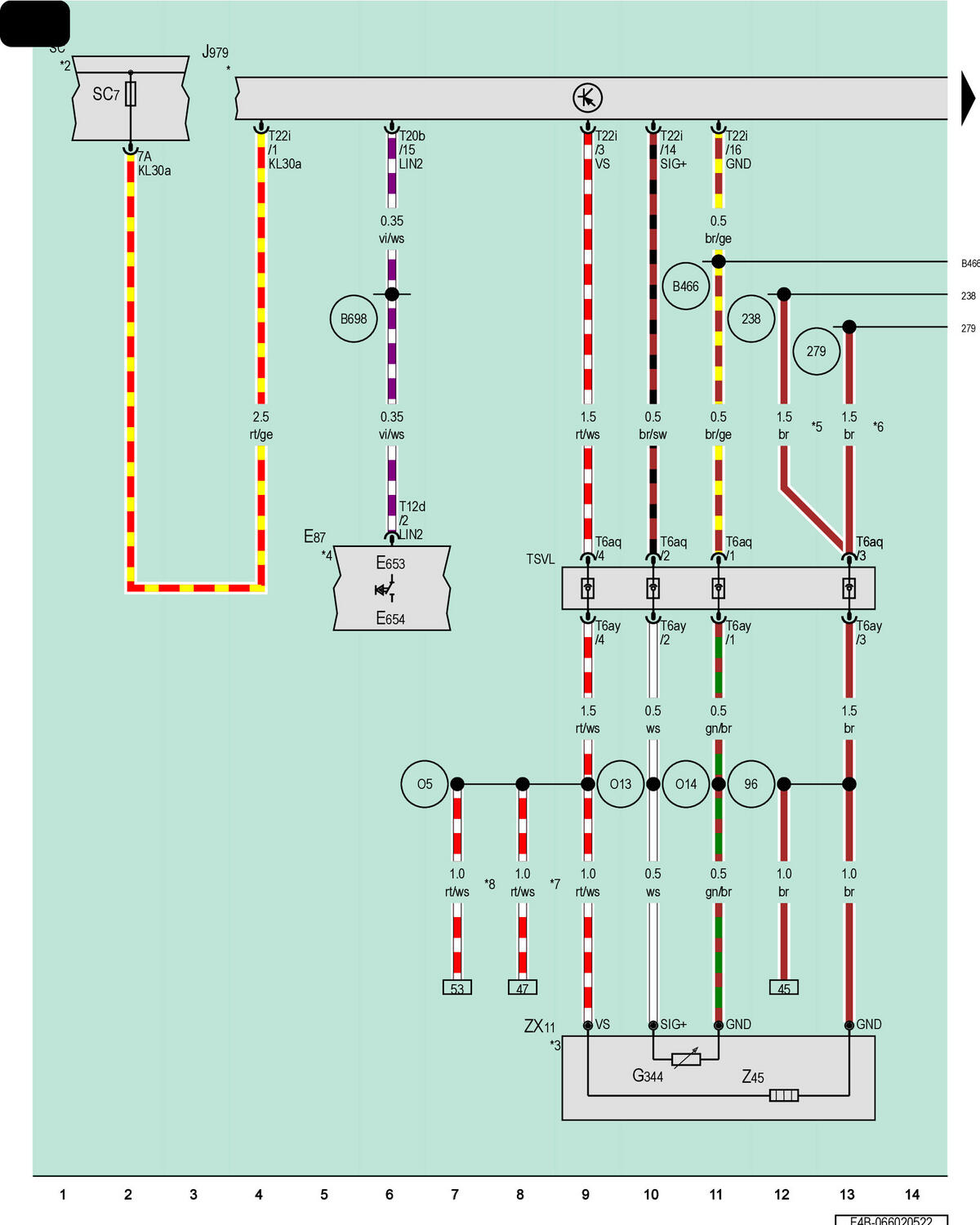

Front A/C Display Control Head, Heating And Air Conditioning Control Module, Fuse Panel C, Left Front Seat Heater
E87
Front A/C Display Control Head
E653
Left Seat Heating Button
E654
Right Seat Heating Button
G344
Left Front Seat Temperature Sensor
J979
Heating and Air Conditioning Control Module
SC
Fuse Panel C
SC7
Fuse 7 (On Fuse Panel C)
T6aq
6-Pin Connector, Green
T6ay
6-Pin Connector, Green
T12d
12-Pin Connector, Black
T20b
20-Pin Connector, Black
T22i
22-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
ZX11
Left Front Seat Heater
Z45
Left Front Seat Heating Element
96
Ground Connection 1 (in Heated Seats Wiring Harness)
238
Ground Connection 1 (in Interior Wiring Harness)
279
Ground Connection 5 (in Interior Wiring Harness)
B466
Connection 2 (in Main Wiring Harness)
B698
LIN Bus Connection 3 (in Main Wiring Harness)
O5
Connection 1 (15a) in Heated Seats Wiring Harness
O13
Connection 2 (in Heated Seats Wiring Harness)
O14
Connection 3 (in Heated Seats Wiring Harness)
*
Refer to Applicable Windshield Defogger Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Pre-Wired Component
*4
Refer to Applicable A/C System Wiring Diagram
*5
For RHD Vehicles
*6
For LHD Vehicles
*7
For Vehicles Without Seat Depth Adjuster
*8
For Vehicles with Seat Depth Adjustment
