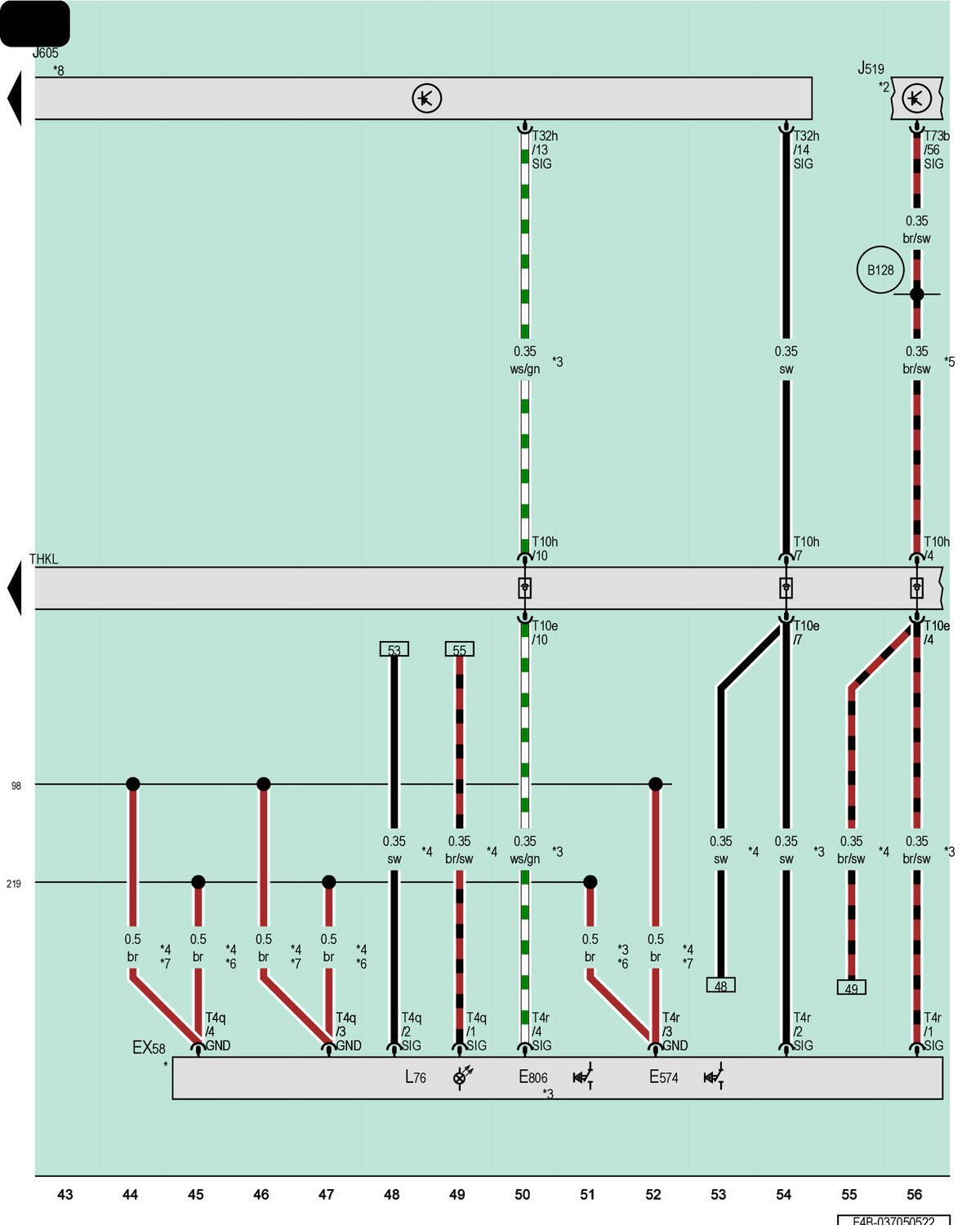

Rear Lid Control Head, Vehicle Electrical System Control Module, Rear Lid Control Module
EX58
Rear Lid Control Head
E574
Rear Lid Closing Button
E806
Locking Mechanism Button in Rear Lid
J519
Vehicle Electrical System Control Module
J605
Rear Lid Control Module
L76
Push Button Illumination Bulb
T4q
4-Pin Connector, Black
T4r
4-Pin Connector, Brown
T10e
10-Pin Connector, Blue
T10h
10-Pin Connector, Blue
T32h
32-Pin Connector, Black
T73b
73-Pin Connector, Black
THKL
Coupling Point on Rear Lid, Left
98
Ground Connection (in Rear Lid Wiring Harness)
219
Ground Connection 2 (in Rear Lid Wiring Harness)
B128
Luggage Compartment Lamp Connection (in Interior Wiring Harness)
*
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For Vehicles with Keyless Access Authorization
*4
For Vehicles Without Keyless Access Authorization
*5
Different Wire Color Possible
*6
Hatchback
*7
Sportback
*8
Refer to Applicable Driver Door Wiring Diagram
