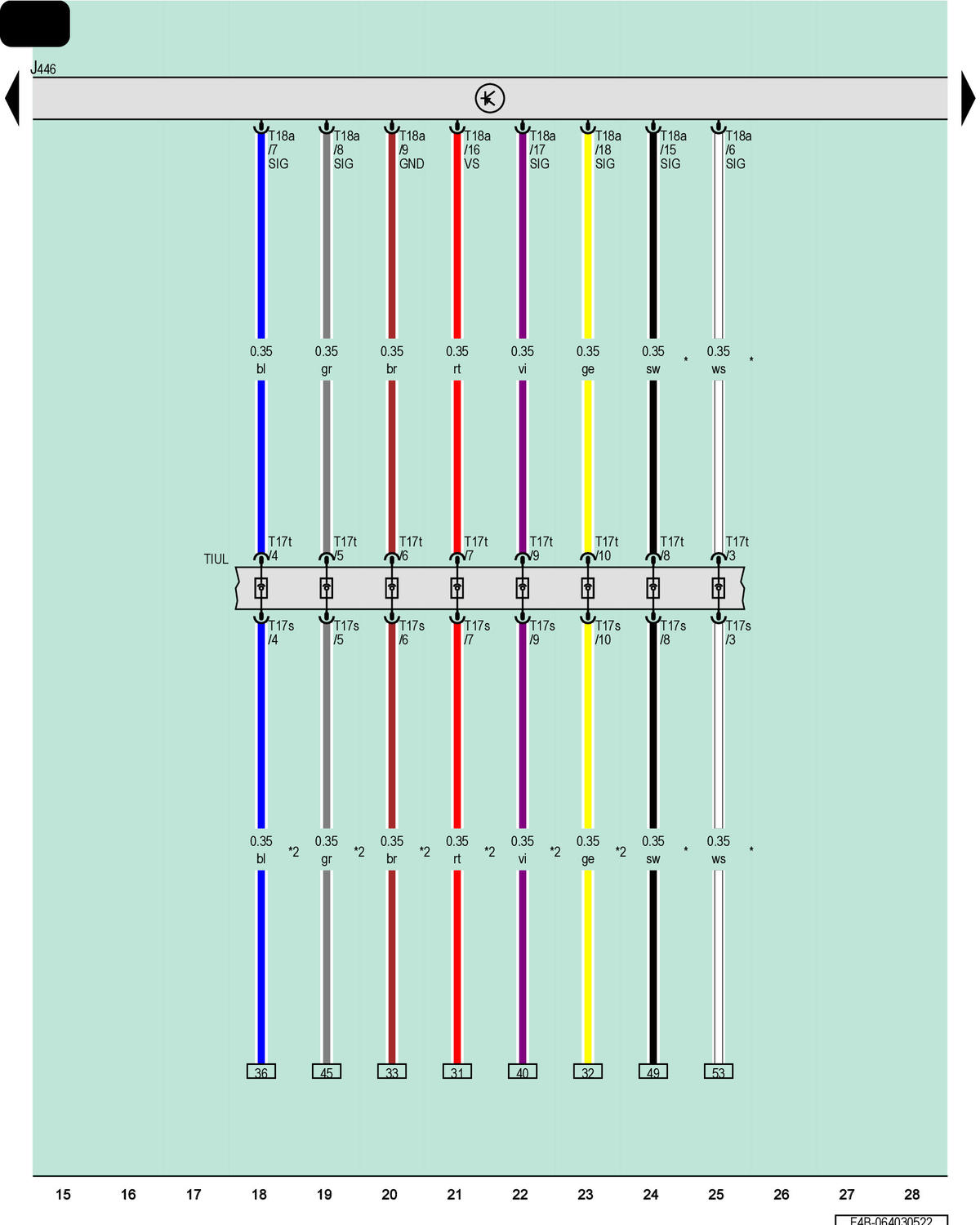

Parking Aid Control Module

GWWF4B-064030522Courtesy of AUDI OF AMERICA, LLC

J446

Parking Aid Control Module

T17s

17-Pin Connector, Blue

T17t

17-Pin Connector, Blue

T18a

18-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

*

For Vehicles with Parallel Parking Assistance

*2

Front Parking Aid
