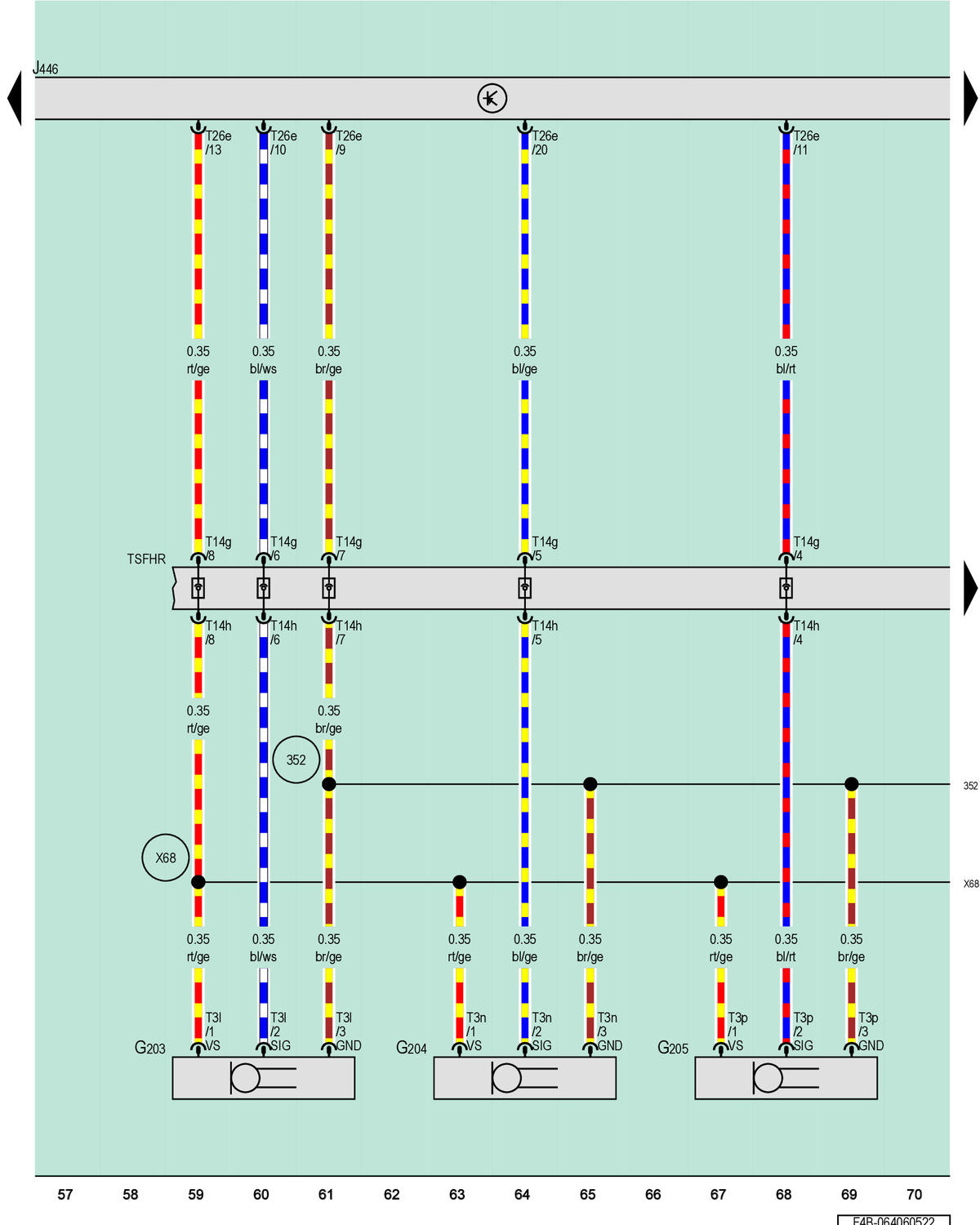

Left Rear Parking Aid Sensor, Left Rear Center Parking Aid Sensor, Right Rear Center Parking Aid Sensor, Parking Aid Control Module
G203
Left Rear Parking Aid Sensor
G204
Left Rear Center Parking Aid Sensor
G205
Right Rear Center Parking Aid Sensor
J446
Parking Aid Control Module
T3l
3-Pin Connector, Black
T3n
3-Pin Connector, Black
T3p
3-Pin Connector, Black
T14g
14-Pin Connector, Black
T14h
14-Pin Connector, Black
T26e
26-Pin Connector, Black
TSFHR
Coupling Point on Right Rear Bumper
352
Parking Aid Ground Connection (in Rear Bumper Wiring Harness)
X68
Parking Aid Connection (in Rear Bumper Wiring Harness)
