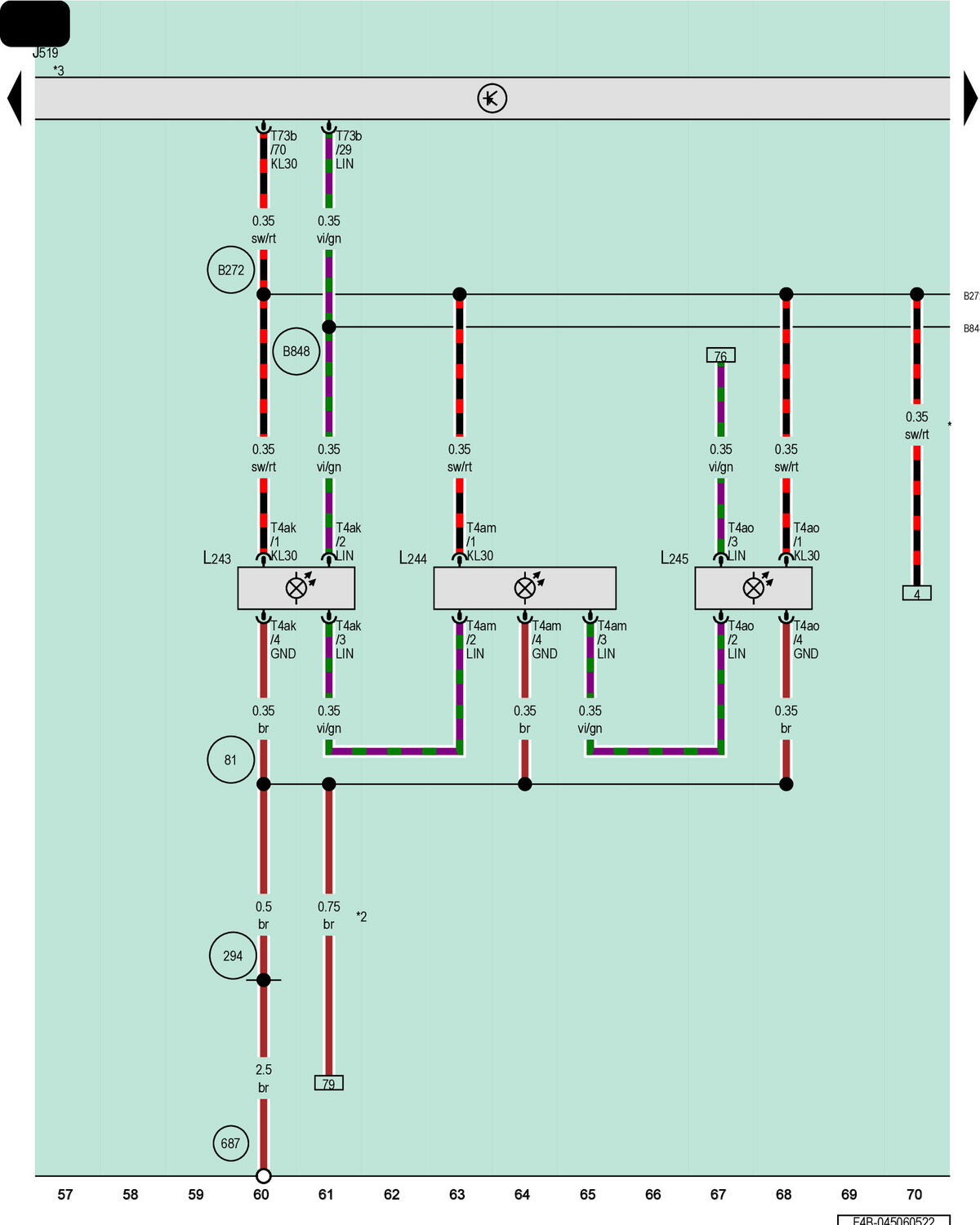

Vehicle Electrical System Control Module, Instrument Panel Contour Illumination Lamp 1, Instrument Panel Contour Illumination Lamp 2, Instrument Panel Contour Illumination Lamp 3
J519
Vehicle Electrical System Control Module
L243
Instrument Panel Contour Illumination Lamp 1
L244
Instrument Panel Contour Illumination Lamp 2
L245
Instrument Panel Contour Illumination Lamp 3
T4ak
4-Pin Connector, Black
T4am
4-Pin Connector, Black
T4ao
4-Pin Connector, Brown
T73b
73-Pin Connector, Black
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
B272
Positive Connection (30) (in Main Wiring Harness)
B848
LIN Bus Connection 12 (in Main Wiring Harness)
*
From June 2021
*2
Diameter Depends on Equipment
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
