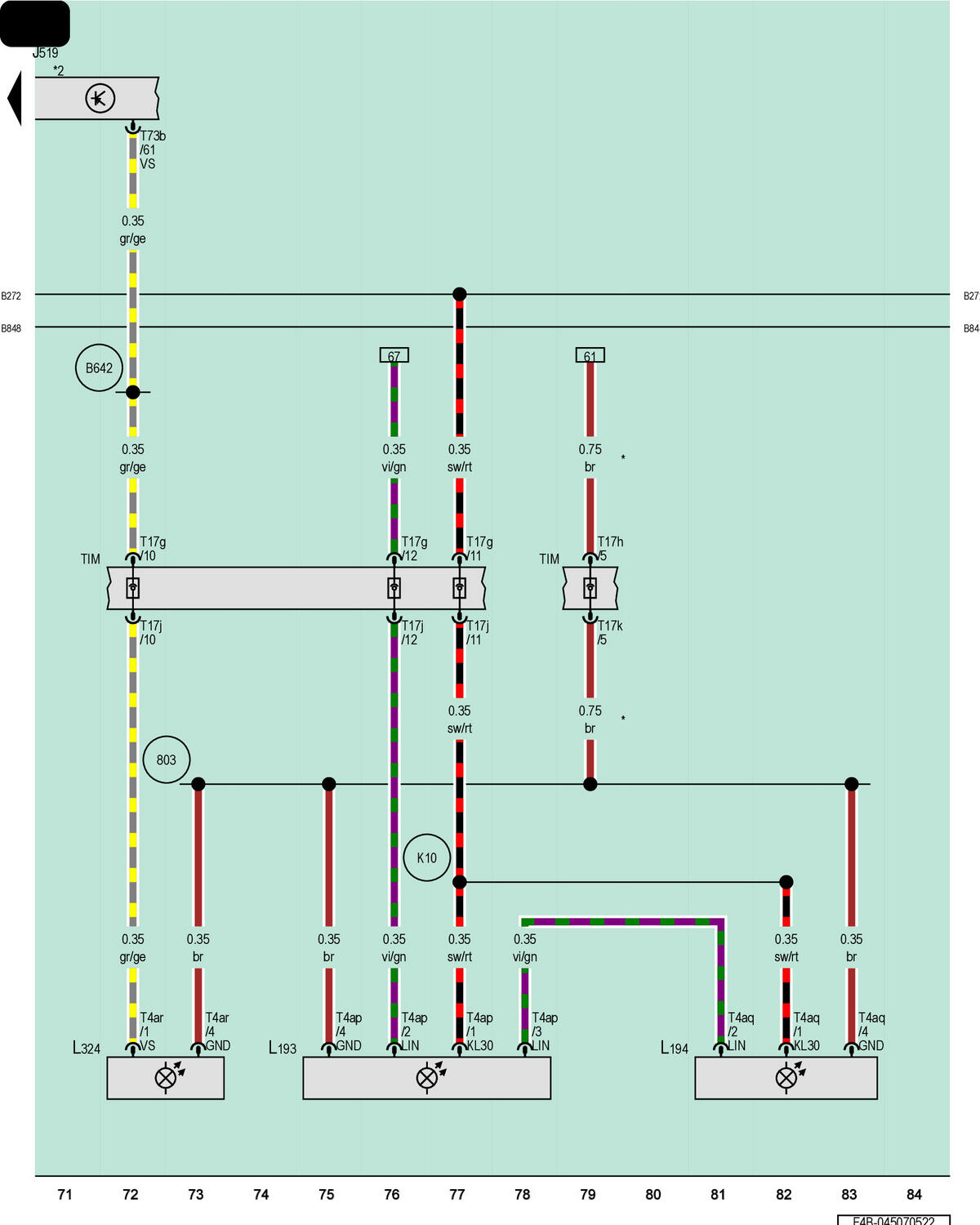

Vehicle Electrical System Control Module, Front Center Console Ambient Lighting Bulb 1, Front Center Console Ambient Lighting Bulb 2, Front Center Console Storage Compartment Illumination Bulb
J519
Vehicle Electrical System Control Module
L193
Front Center Console Ambient Lighting Bulb 1
L194
Front Center Console Ambient Lighting Bulb 2
L324
Front Center Console Storage Compartment Illumination Bulb
T4ap
4-Pin Connector, Black
T4aq
4-Pin Connector, Brown
T4ar
4-Pin Connector, Red
T17g
17-Pin Connector, Black
T17h
17-Pin Connector, Red
T17j
17-Pin Connector, Black
T17k
17-Pin Connector, Red
T73b
73-Pin Connector, Black
TIM
Coupling Point in Interior, Center
803
Ground Connection (in Center Console Wiring Harness)
B272
Positive Connection (30) (in Main Wiring Harness)
B642
Positive Connection (58) (in Main Wiring Harness)
B848
LIN Bus Connection 12 (in Main Wiring Harness)
K10
Connection 3 (in Center Console Wiring Harness)
*
Diameter Depends on Equipment
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
