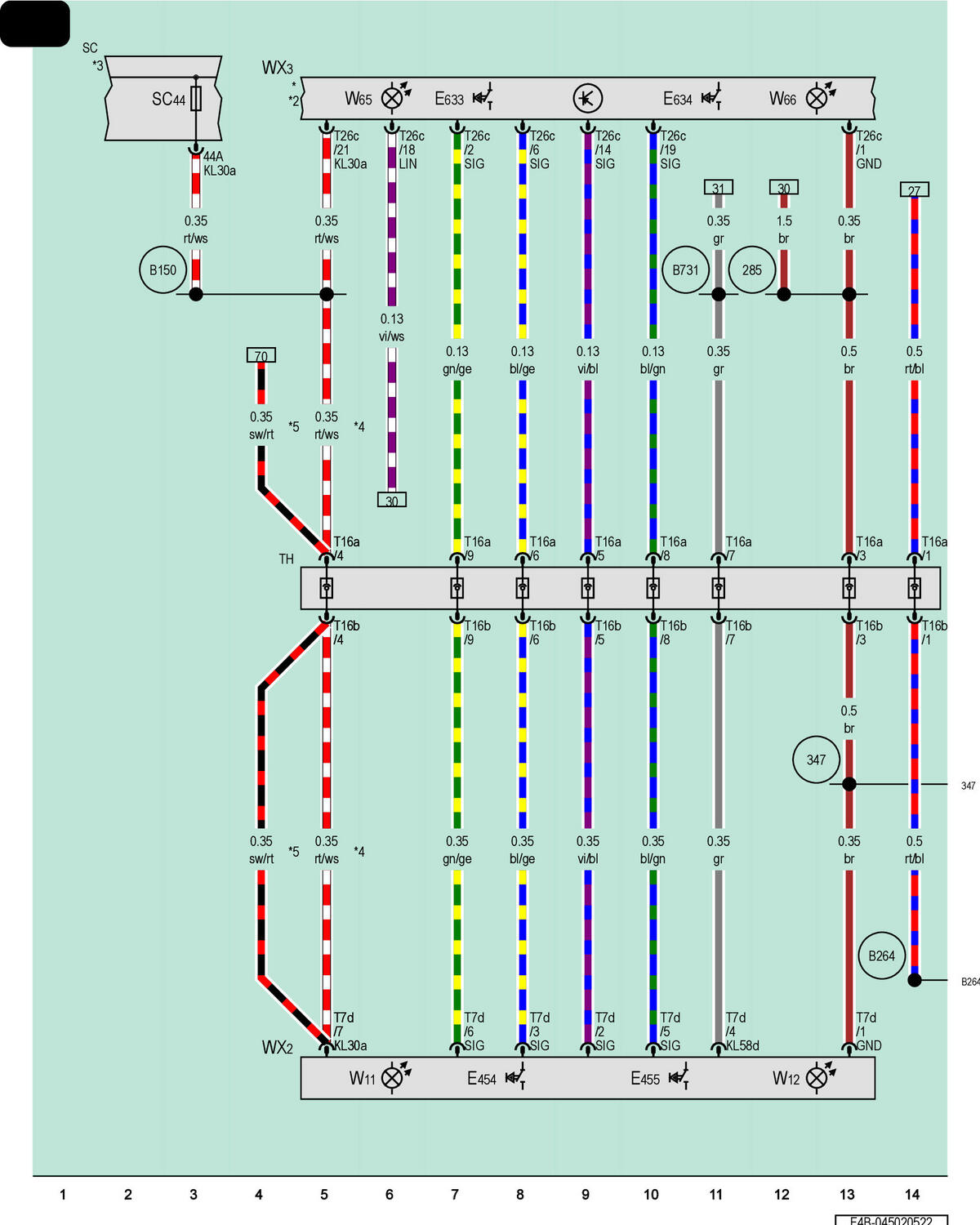

Fuse Panel C, Rear Interior Lamp, Front Roof Module
E454
Left Rear Reading Lamp Switch
E455
Right Rear Reading Lamp Switch
E633
Left Front Reading Lamp Button
E634
Right Front Reading Lamp Button
SC
Fuse Panel C
SC44
Fuse 44 (On Fuse Panel C)
T7d
7-Pin Connector, Black
T16a
16-Pin Connector, Brown
T16b
16-Pin Connector, Brown
T26c
26-Pin Connector, Black
TH
Coupling Point on Roof
WX2
Rear Interior Lamp
WX3
Front Roof Module
W11
Left Rear Reading Lamp
W12
Right Rear Reading Lamp
W65
Left Front Reading Lamp
W66
Right Front Reading Lamp
285
Ground Connection 7 (in Interior Wiring Harness)
347
Ground Connection (in Roof Wiring Harness)
B150
Positive Connection 2 (30a) (in Interior Wiring Harness)
B264
Connection 1 (in Roof Wiring Harness)
B731
Connection 58s (in Main Wiring Harness) 1
*
Refer to Applicable Communication Wiring Diagram
*2
Refer to the Applicable Interior Rearview Mirror Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*4
Through June 2021
*5
From June 2021
