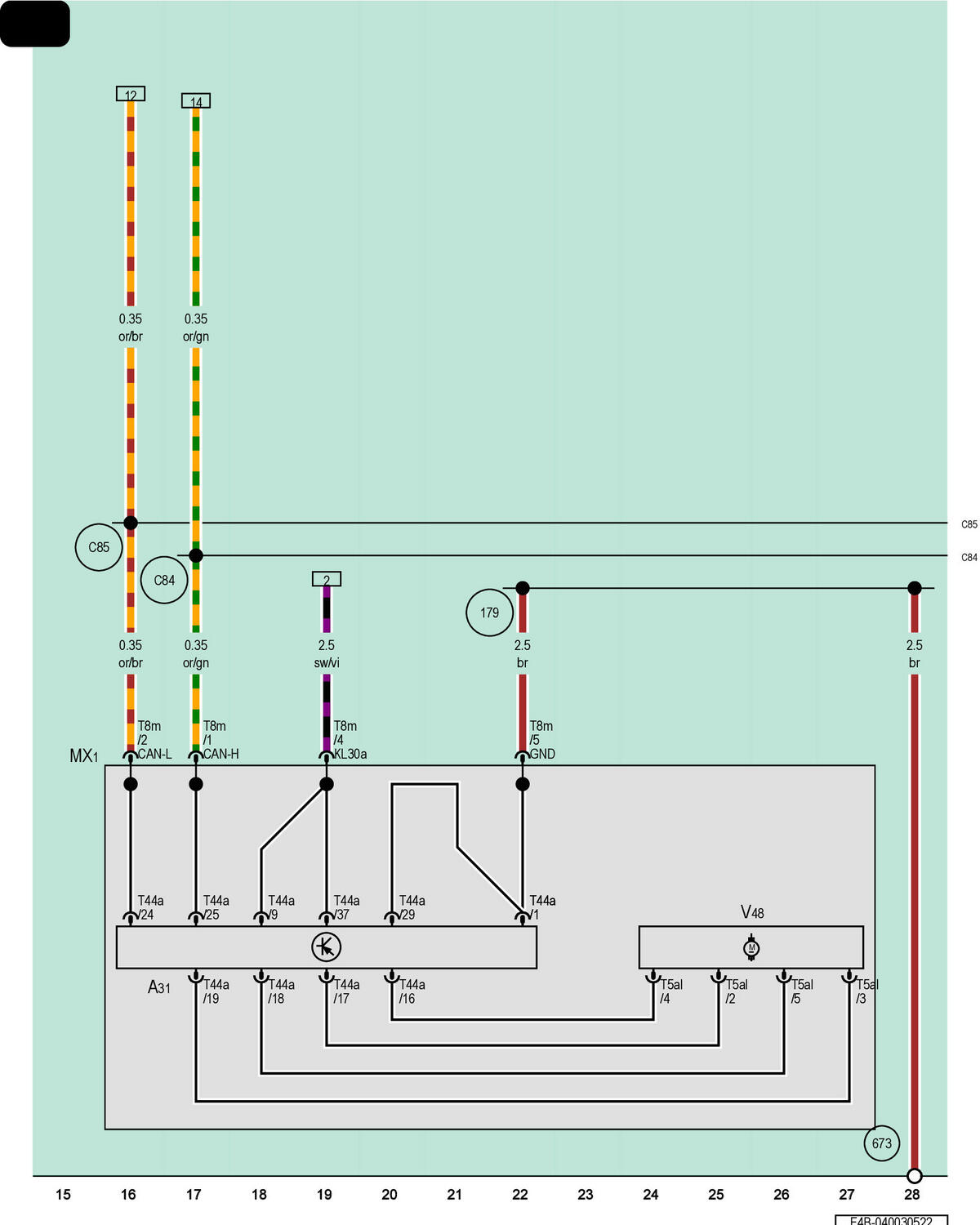

Left Front Headlamp
A31
Left LED Headlamp Power Output Module 1
MX1
Left Front Headlamp
T5al
5-Pin Connector, Black
T8m
8-Pin Connector, Black
T44a
44-Pin Connector, Black
V48
Left Headlamp Range Control Adjustment Motor
179
Ground Connection (in Left Headlamp Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
C84
Connection 1 (CAN Bus Variable Headlamps AFS, High) in Engine/Motor Compartment
C85
Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Engine/Motor Compartment
