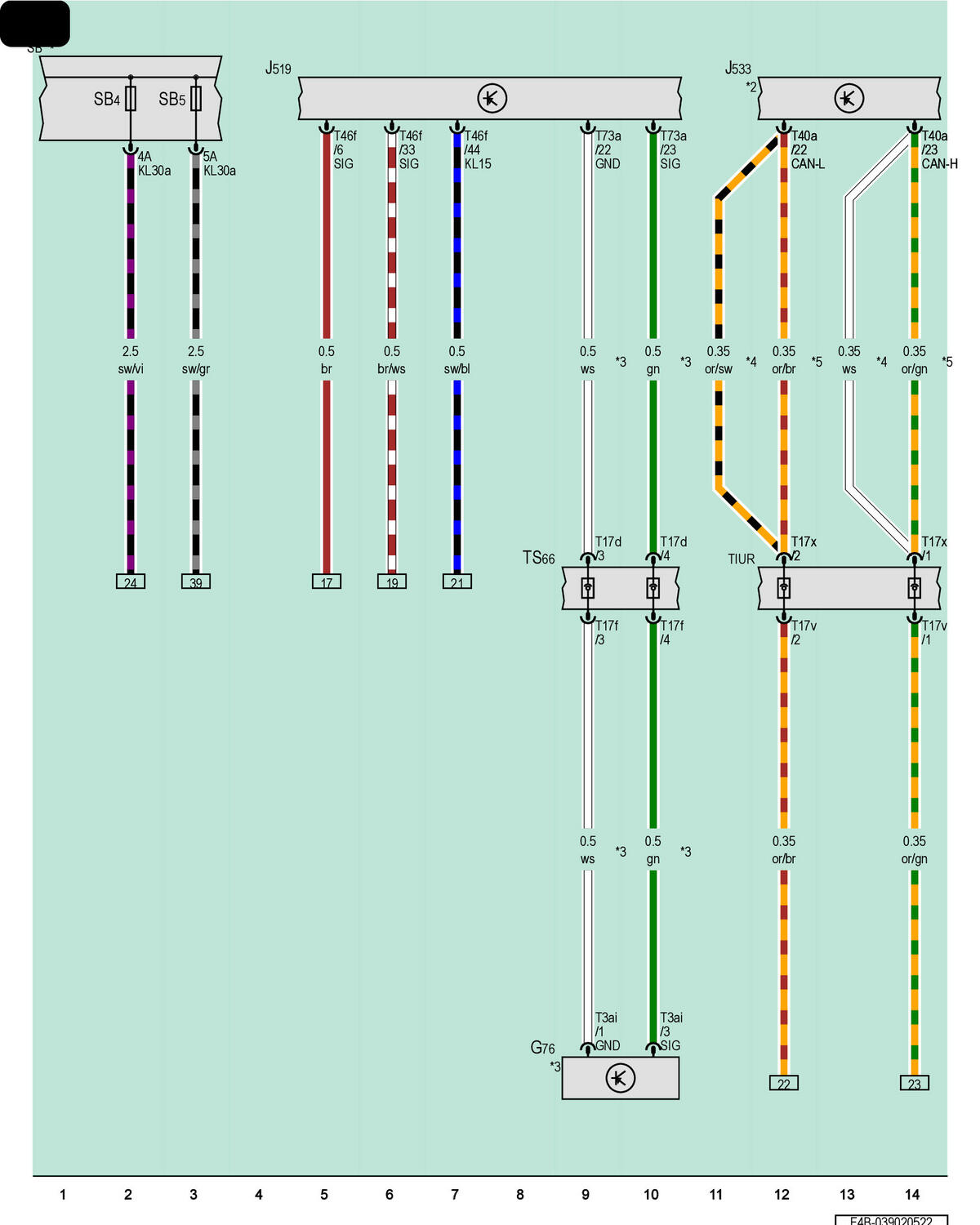

Left Rear Level Control System Sensor, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

G76

Left Rear Level Control System Sensor

J519

Vehicle Electrical System Control Module

J533

Data Bus on Board Diagnostic Interface

SB

Fuse Panel B

SB4

Fuse 4 (On Fuse Panel B)

SB5

Fuse 5 (On Fuse Panel B)

T3ai

3-Pin Connector, Black

T17d

17-Pin Connector, Brown

T17f

17-Pin Connector, Brown

T17v

17-Pin Connector, Brown

T17x

17-Pin Connector, Brown

T40a

40-Pin Connector, Black

T46f

46-Pin Connector, Black

T73a

73-Pin Connector, Black

TIUR

Coupling Point in Interior, Bottom Right

TS66

Rear Suspension Coupling Point

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Refer to Applicable Wiring Diagram for Data Bus Networking

*3

For Vehicles Without Electronic Damping

*4

From July 2022

*5

Through July 2022
