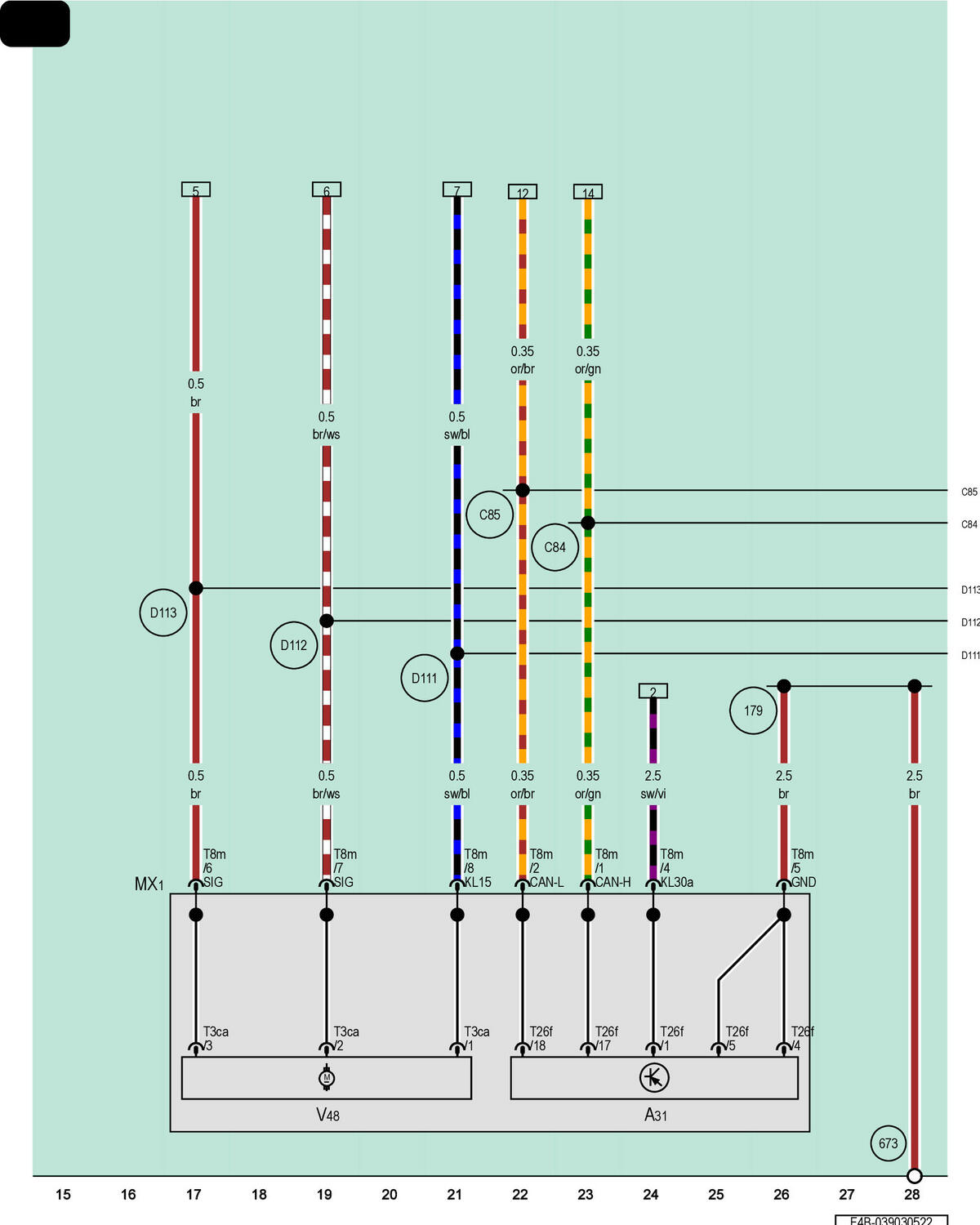

Left Front Headlamp
A31
Left LED Headlamp Power Output Module 1
MX1
Left Front Headlamp
T3ca
3-Pin Connector, Black
T8m
8-Pin Connector, Black
T26f
26-Pin Connector, Black
V48
Left Headlamp Range Control Adjustment Motor
179
Ground Connection (in Left Headlamp Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
C84
Connection 1 (CAN Bus Variable Headlamps AFS, High) in Engine/Motor Compartment
C85
Connection 1 (CAN Bus Variable Headlamps AFS, Low) in Engine/Motor Compartment
D111
Connection 9 (in Engine/Motor Compartment Wiring Harness)
D112
Connection 10 (in Engine/Motor Compartment Wiring Harness)
D113
Connection 11 (in Engine/Motor Compartment Wiring Harness)
