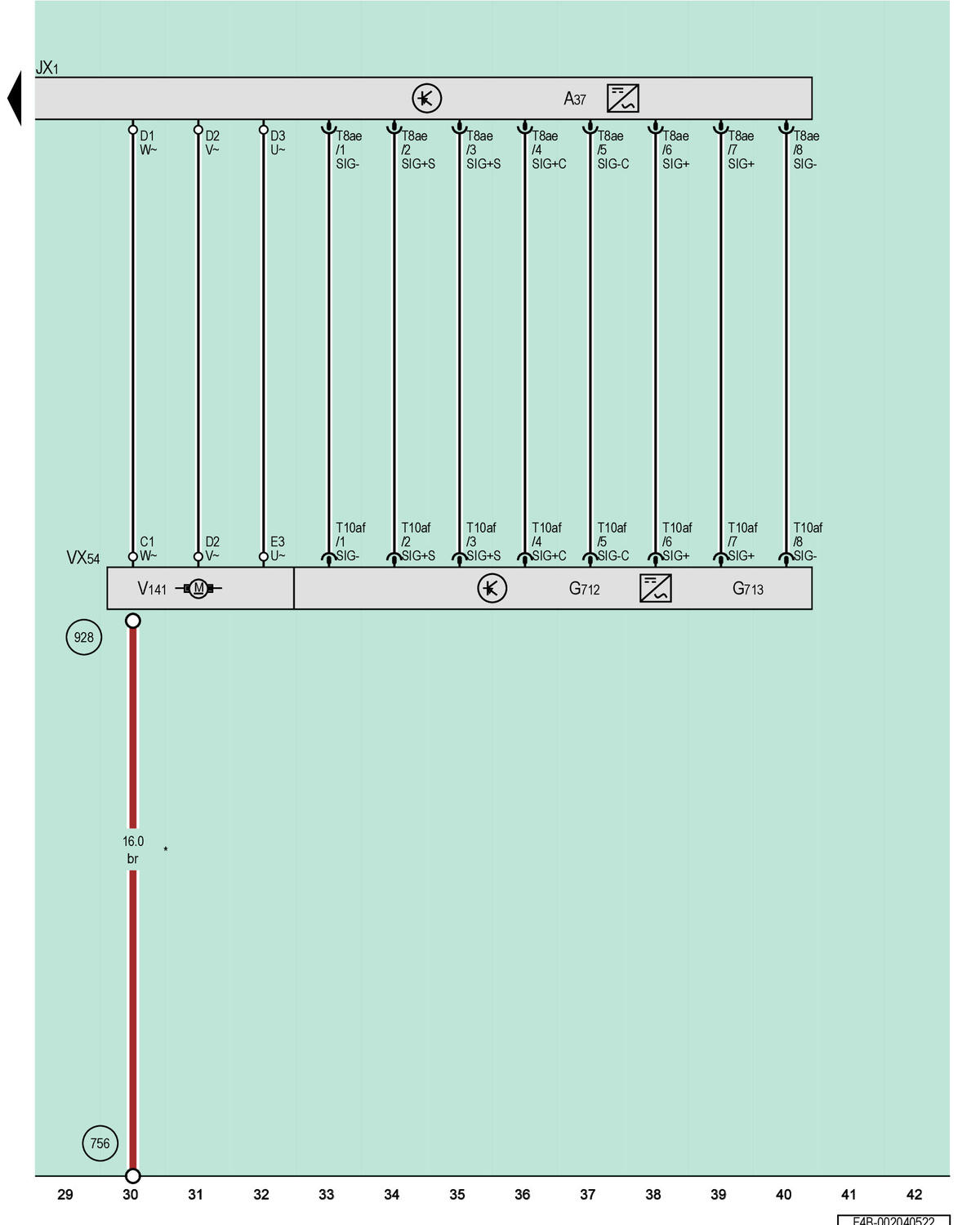

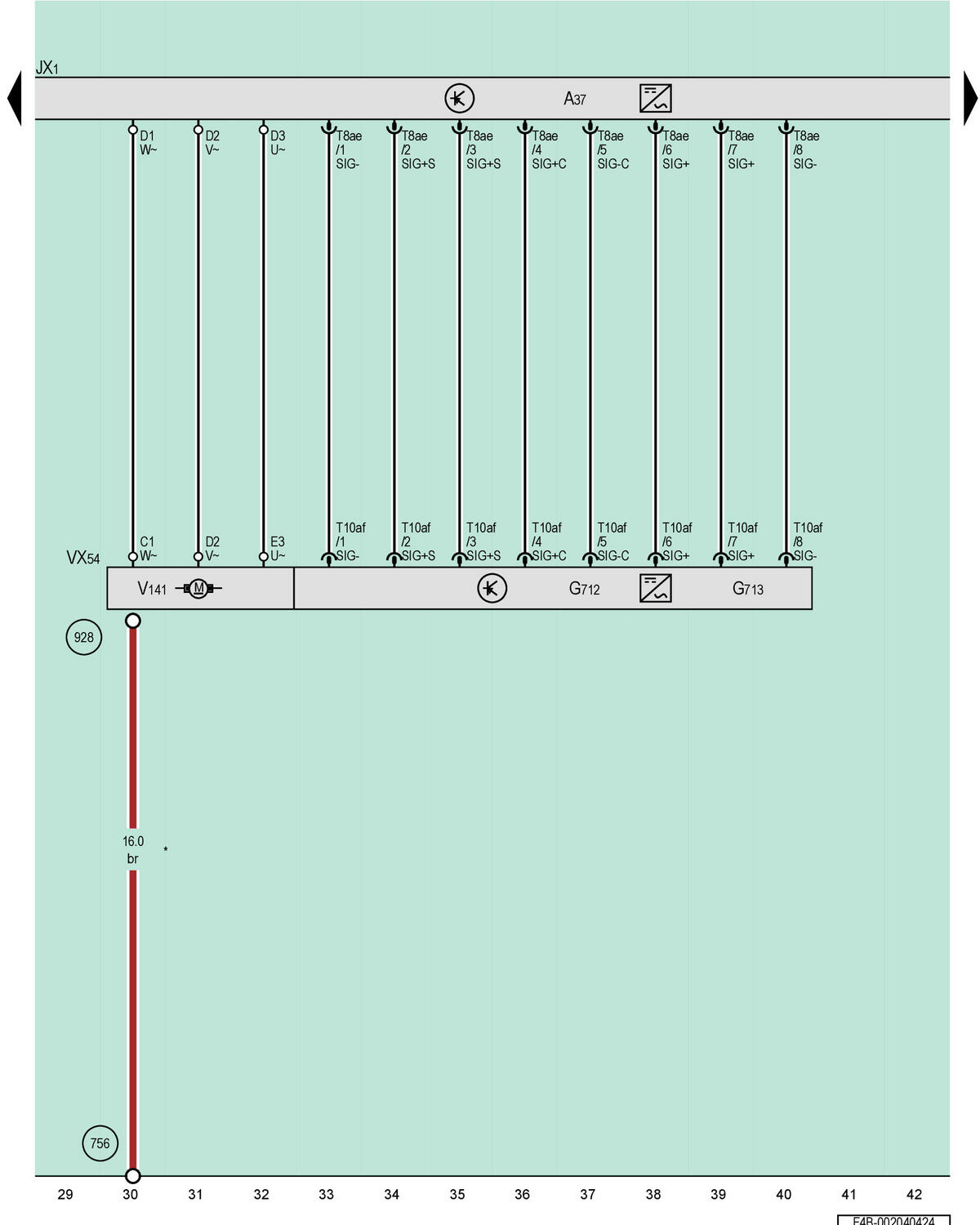

Electric Drive Power And Control Electronics, Three-Phase Current Drive
A37
Drive Motor Inverter
G712
Drive Motor Temperature Sensor
G713
Drive Motor Rotor Position Sensor 1
JX1
Electric Drive Power and Control Electronics
T8ae
8-Pin Connector, Black
T10af
10-Pin Connector, Black
VX54
Three-Phase Current Drive
V141
Electric Drive Motor
756
Ground Connection 1 on Right Rear Chassis Side Member
928
Ground Connection 1 on Electric Drive Motor 2
*
Potential Equalization Cable for Three-Phase Current Drive (P71)
