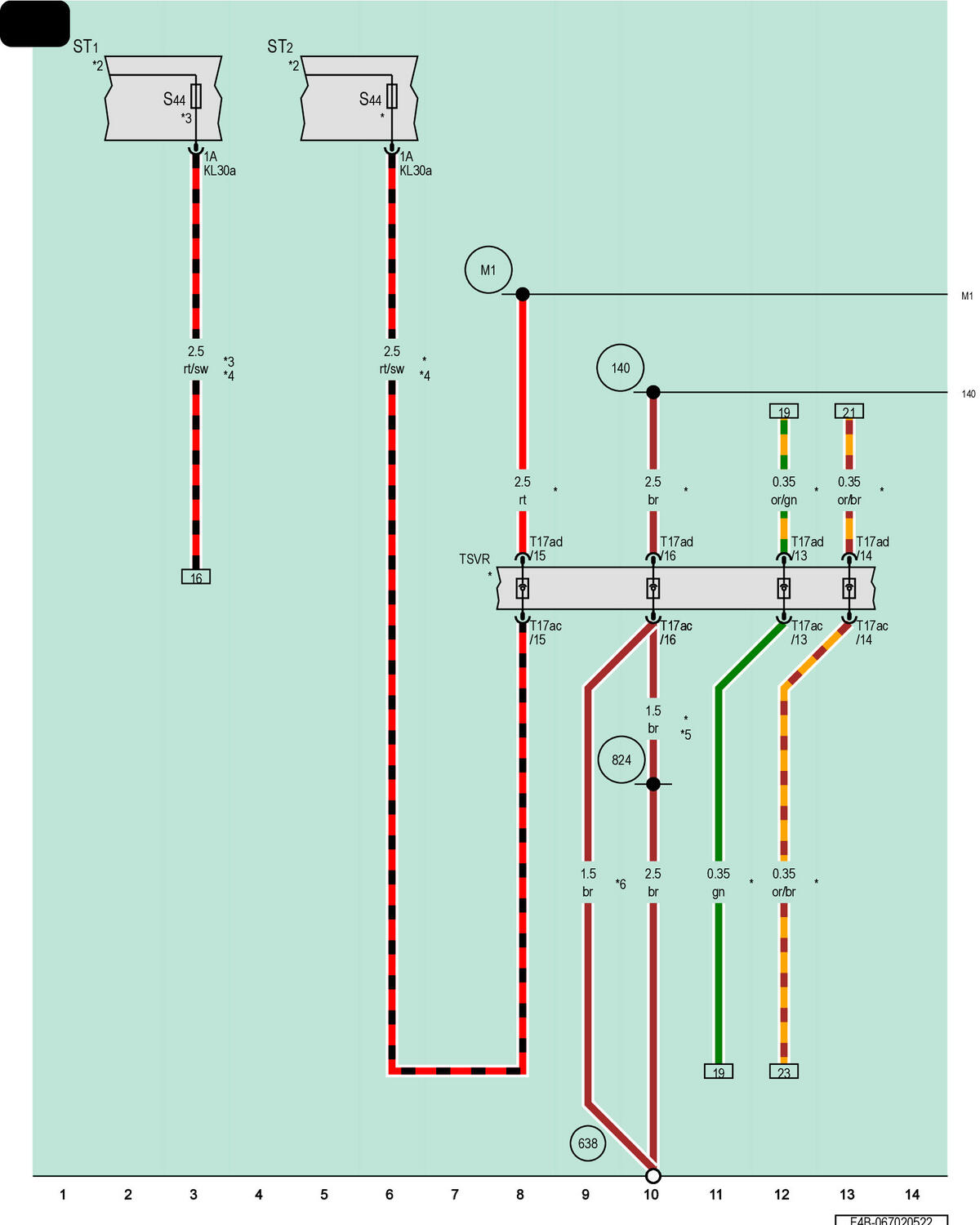

Fuse Panel 1, Fuse Panel 2

Courtesy of AUDI OF AMERICA, LLC

ST1

Fuse Panel 1

ST2

Fuse Panel 2

S44

Driver Power Seat Adjustment Circuit Breaker 1

T17ac

17-Pin Connector, Red

T17ad

17-Pin Connector, Red

TSVR

Right Front Seat Coupling Station

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

638

Ground Connection on Right A-Pillar

824

Ground Connection 17 (in Interior Wiring Harness)

M1

Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)

*

For RHD Vehicles

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

For LHD Vehicles

*4

Diameter Depends on Equipment

*5

Through November 2021

*6

From November 2021
