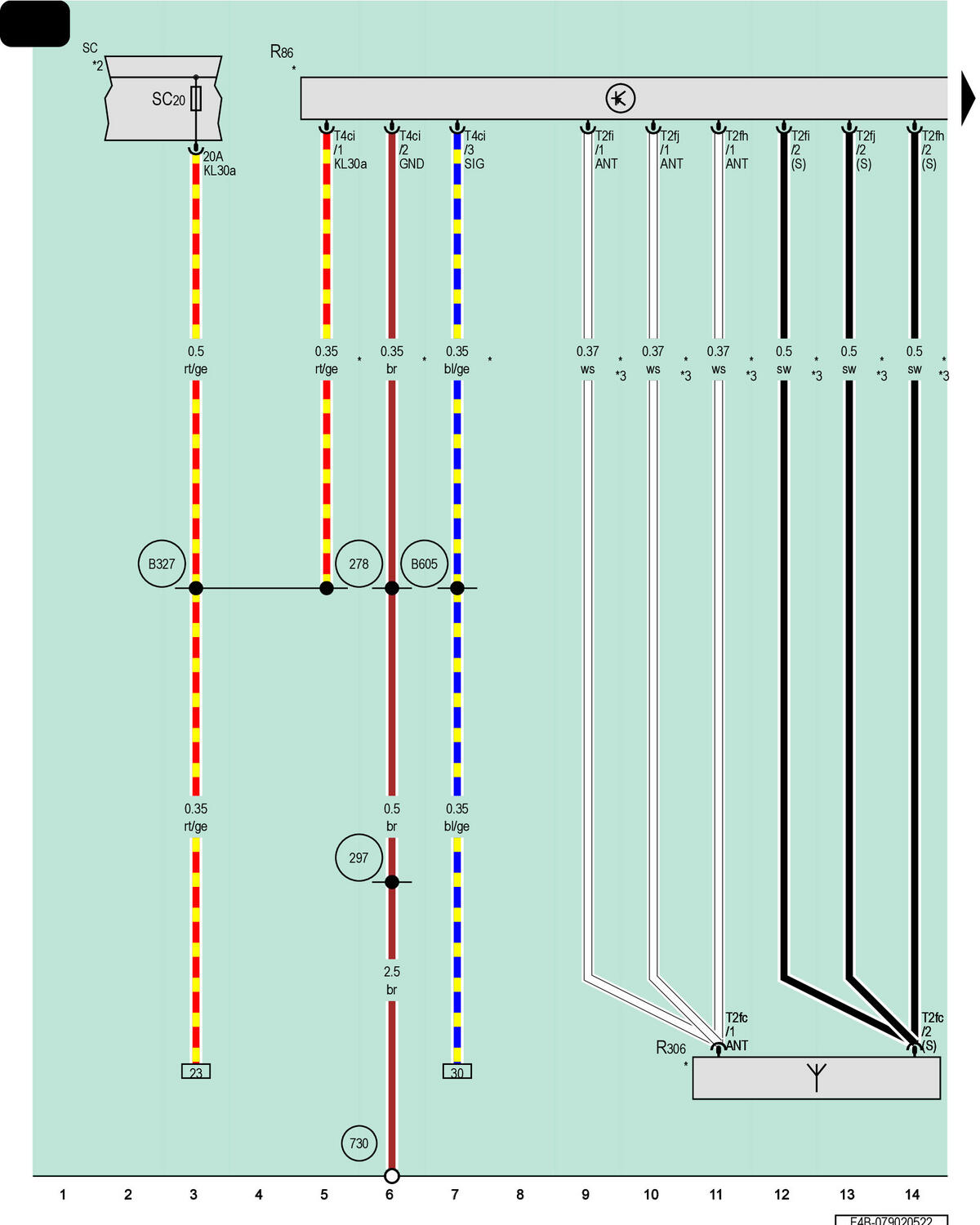

Cellular Telephone Amplifier, LTE Antenna 2, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

R86

Cellular Telephone Amplifier

R306

LTE Antenna 2

SC

Fuse Panel C

SC20

Fuse 20 (On Fuse Panel C)

T2fc

2-Pin Connector, Purple

T2fh

2-Pin Connector, Purple

T2fi

2-Pin Connector, Naturally Cloudy

T2fj

2-Pin Connector, Yellow

T4ci

4-Pin Connector, Black

278

Ground Connection 4 (in Interior Wiring Harness)

297

Ground Connection 12 (in Interior Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

B327

Positive Connection 13 (30a) (in Main Wiring Harness)

B605

Connection 1 (in Interior Wiring Harness)

*

For Vehicles with a Cell Phone Amplifier

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

Depending on Equipment
