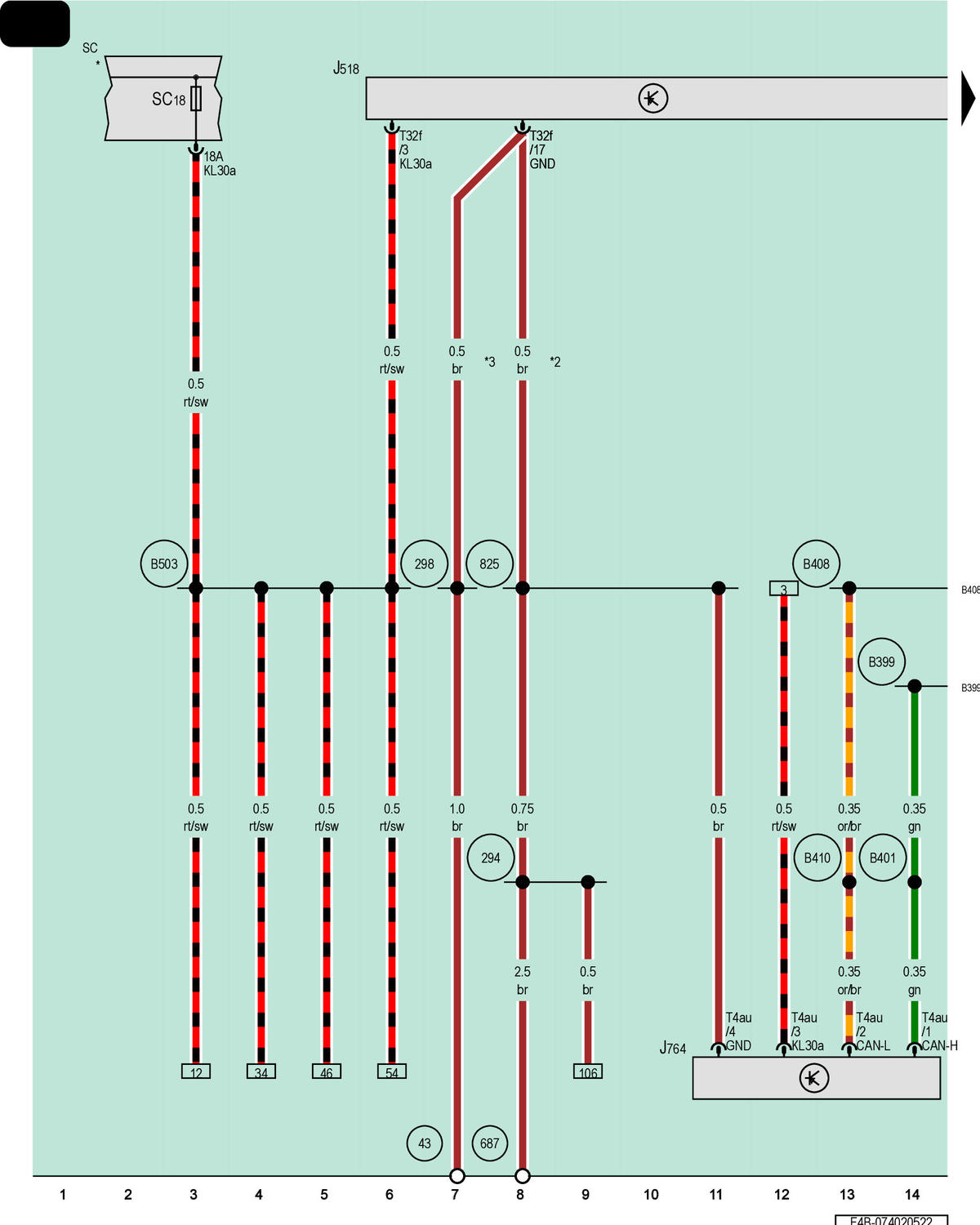

Access/Start Authorization Control Module, Electronic Steering Column Lock Control Module, Fuse Panel C
J518
Access/Start Authorization Control Module
J764
Electronic Steering Column Lock Control Module
SC
Fuse Panel C
SC18
Fuse 18 (On Fuse Panel C)
T4au
4-Pin Connector, Black
T32f
32-Pin Connector, Gray
43
Ground Connection on A-Pillar, Lower Right
294
Ground Connection 9 (in Interior Wiring Harness)
298
Ground Connection 13 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
825
Ground Connection 18 (in Interior Wiring Harness)
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B401
Comfort System CAN Bus High Connection 5 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
B410
Comfort System CAN Bus Low Connection 5 (in Main Wiring Harness)
B503
Positive Connection 7 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
For LHD Vehicles
*3
For RHD Vehicles
