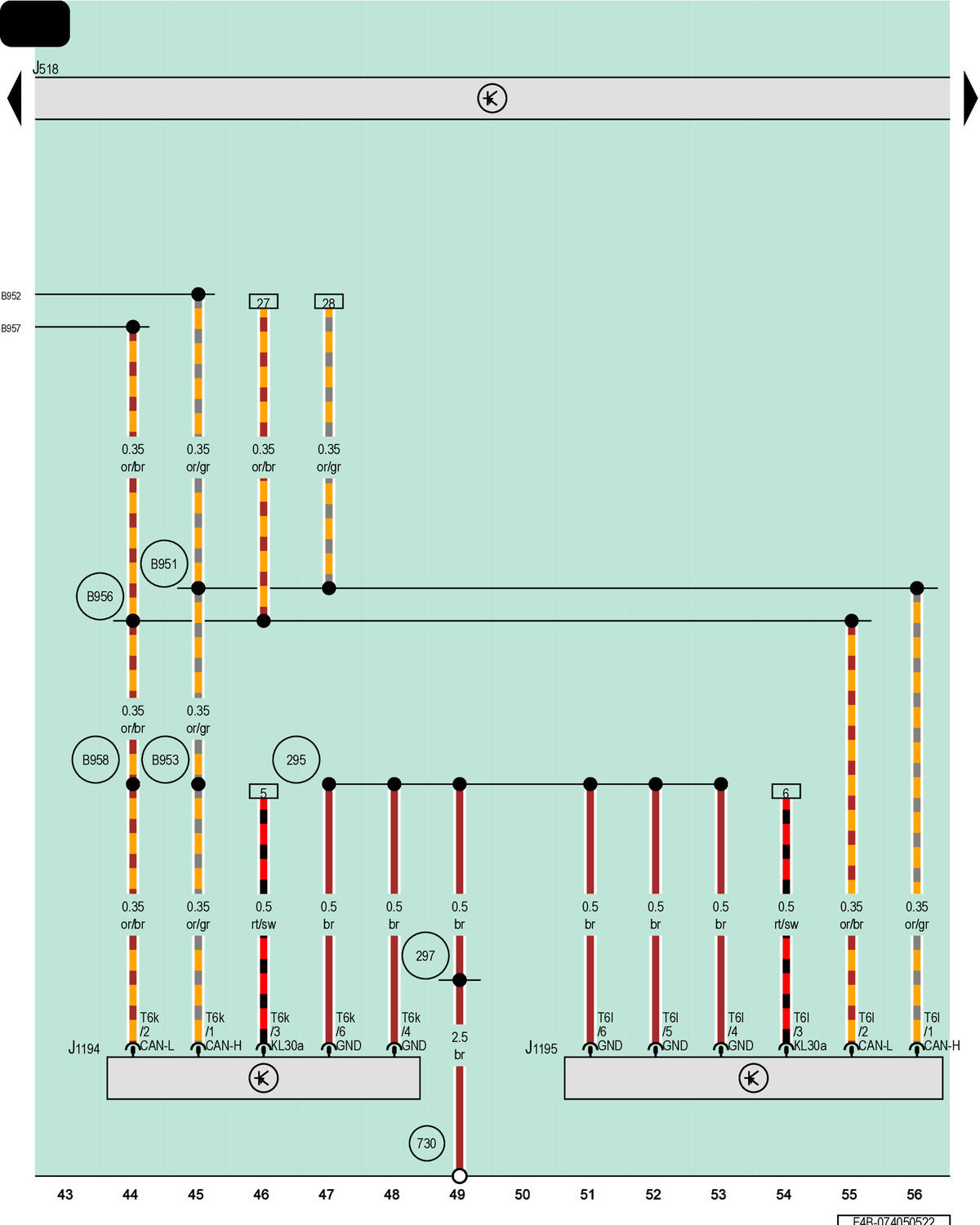

Access/Start Authorization Control Module, Burglary Protection Control Module 4, Burglary Protection Control Module 5

Courtesy of AUDI OF AMERICA, LLC

J518

Access/Start Authorization Control Module

J1194

Burglary Protection Control Module 4

J1195

Burglary Protection Control Module 5

T6k

6-Pin Connector, Black

T6l

6-Pin Connector, Black

295

Ground Connection 10 (in Interior Wiring Harness)

297

Ground Connection 12 (in Interior Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

B951

Connection 2 (CAN Bus Connectivity High) in Main Wiring Harness

B952

Connection 3 (CAN Bus Connectivity High) in Main Wiring Harness

B953

Connection 4 (CAN Bus Connectivity High) in Main Wiring Harness

B956

Connection 2 (CAN Bus Connectivity Low) in Main Wiring Harness

B957

Connection 3 (CAN Bus Connectivity Low) in Main Wiring Harness

B958

Connection 4 (CAN Bus Connectivity Low) in Main Wiring Harness
