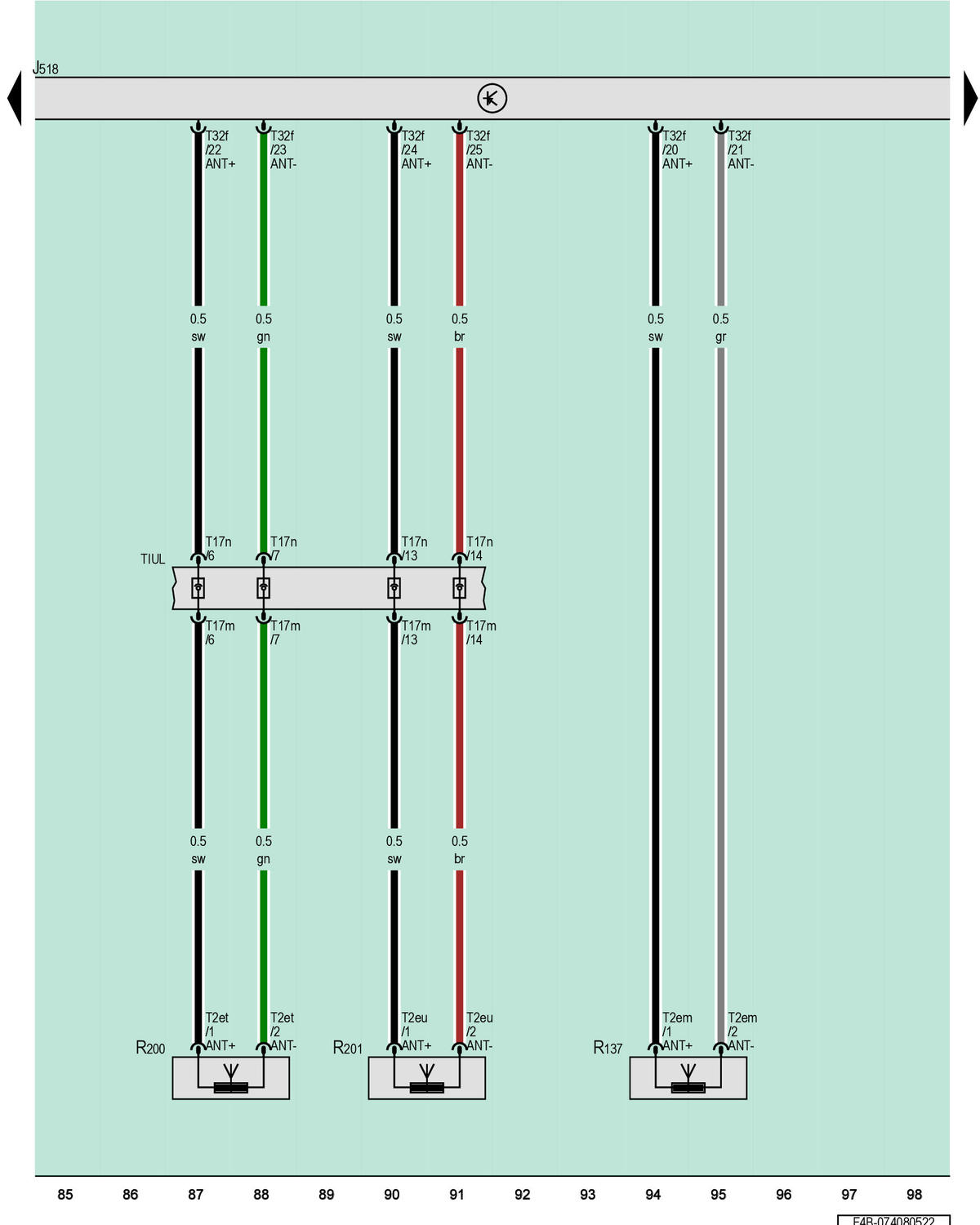

Access/Start Authorization Control Module, Access/Start System Antenna In Luggage Compartment, Left Access/Start Authorization Antenna, Right Access/Start Authorization Antenna

Courtesy of AUDI OF AMERICA, LLC

J518

Access/Start Authorization Control Module

R137

Access/Start System Antenna in Luggage Compartment

R200

Left Access/Start Authorization Antenna

R201

Right Access/Start Authorization Antenna

T2em

2-Pin Connector, Black

T2et

2-Pin Connector, Black

T2eu

2-Pin Connector, Black

T17m

17-Pin Connector, Black

T17n

17-Pin Connector, Black

T32f

32-Pin Connector, Gray

TIUL

Coupling Point in Interior, Bottom Left
