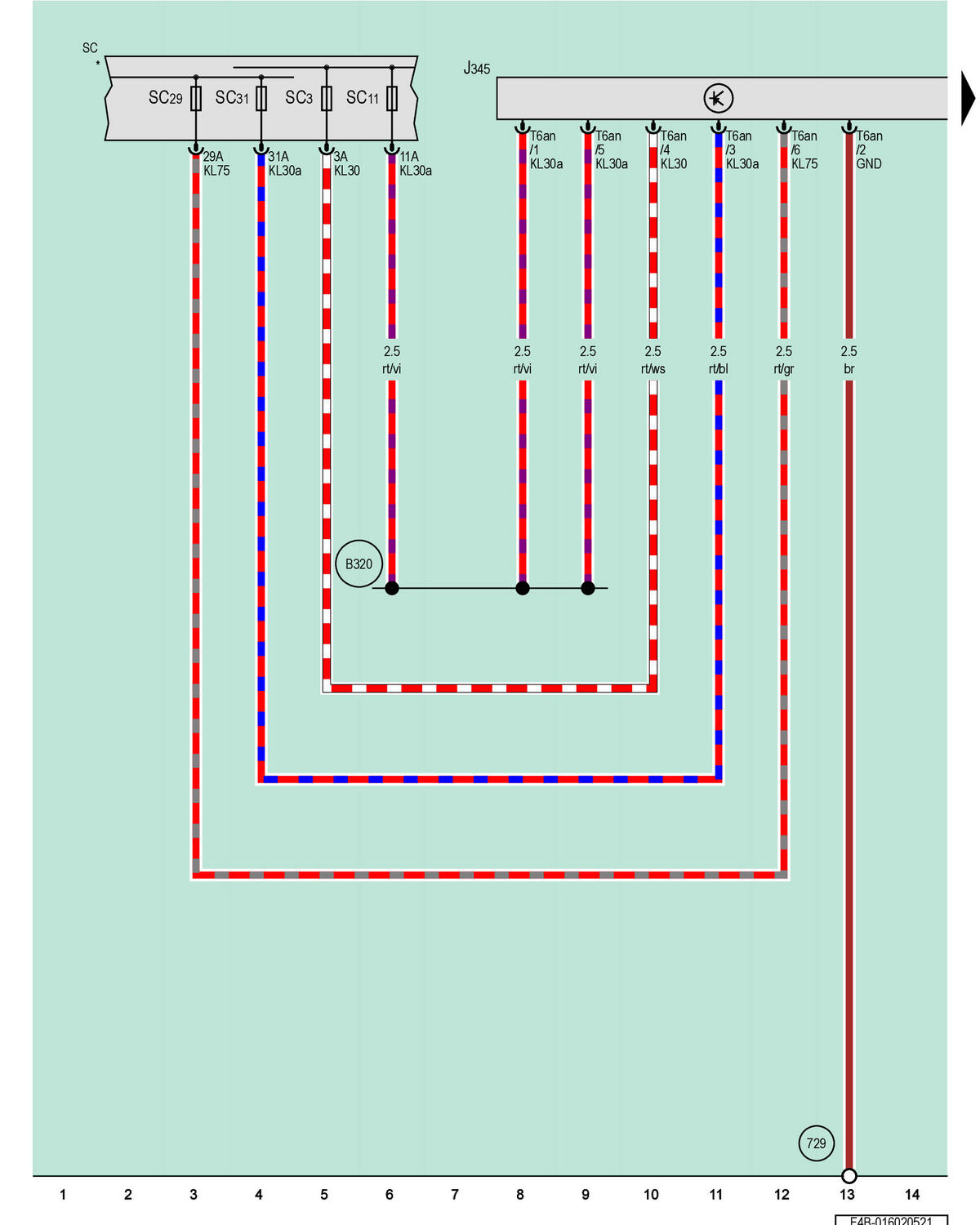

Towing Recognition Control Module, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

Fuse Panel C

SC3

Fuse 3 (On Fuse Panel C)

SC11

Fuse 11 (On Fuse Panel C)

SC29

Fuse 29 (On Fuse Panel C)

SC31

Fuse 31 (On Fuse Panel C)

T6an

6-Pin Connector, Black

729

Ground Connection on Left Rear Wheel Housing

B320

Positive Connection 6 (30a) (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
