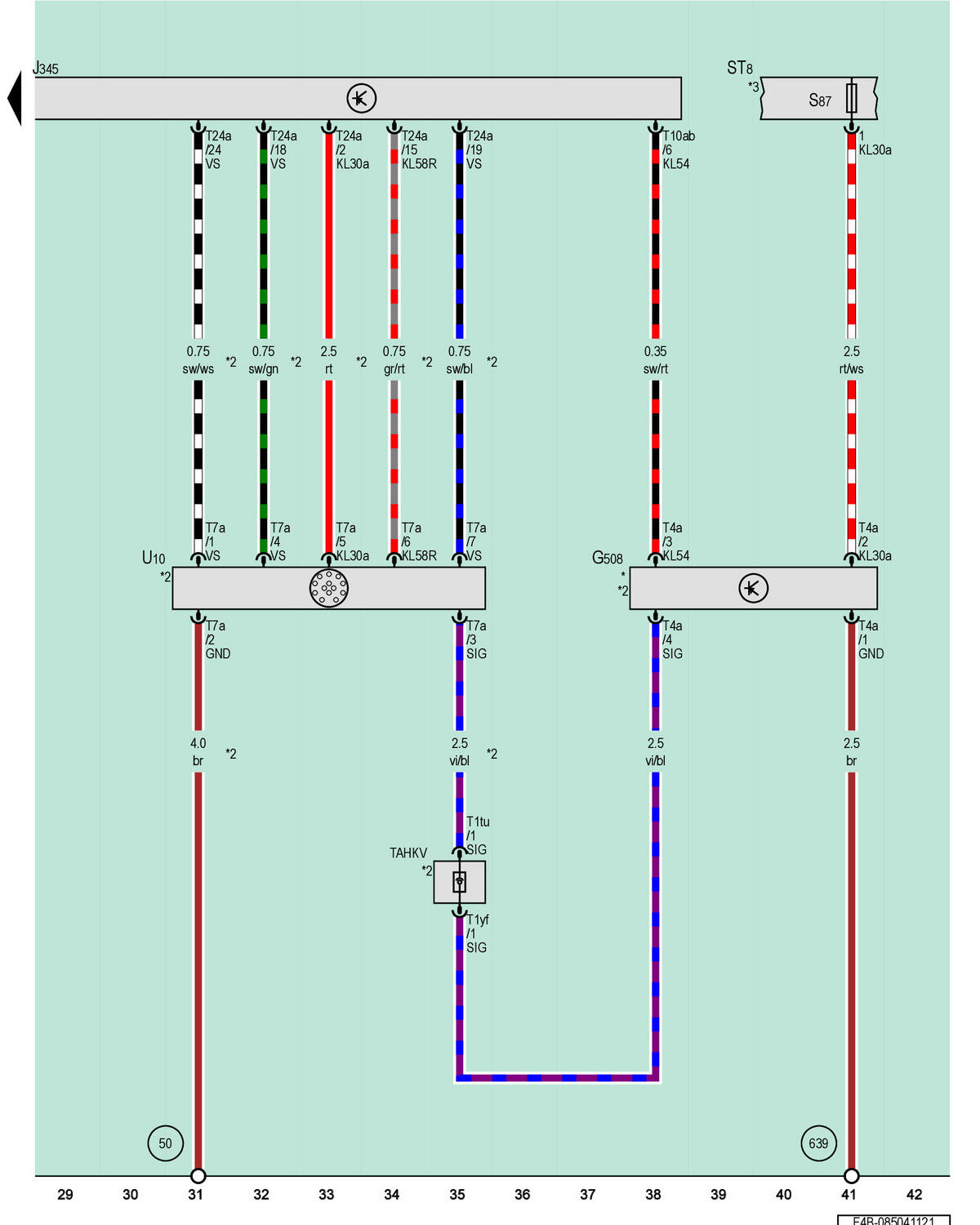

Electric Trailer Brake Position Sensor, Towing Recognition Control Module, Fuse Panel 8, Trailer Socket

Courtesy of AUDI OF AMERICA, LLC

G508

Electric Trailer Brake Position Sensor

J345

Towing Recognition Control Module

ST8

Fuse Panel 8

S87

Trailer Circuit Breaker

T1tu

1-Pin Connector, Black

T1yf

1-Pin Connector, Black

T4a

4-Pin Connector, Black

T7a

7-Pin Connector, Black

T10ab

10-Pin Connector, Black

T24a

24-Pin Connector, Black

TAHKV

Electric Trailer Brake Coupling Point

U10

Trailer Socket

50

Ground Connection in Luggage Compartment, Left

639

Ground Connection on Left A-Pillar

*

Pre-Wired Component

*2

Not Included in the Preparation

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
