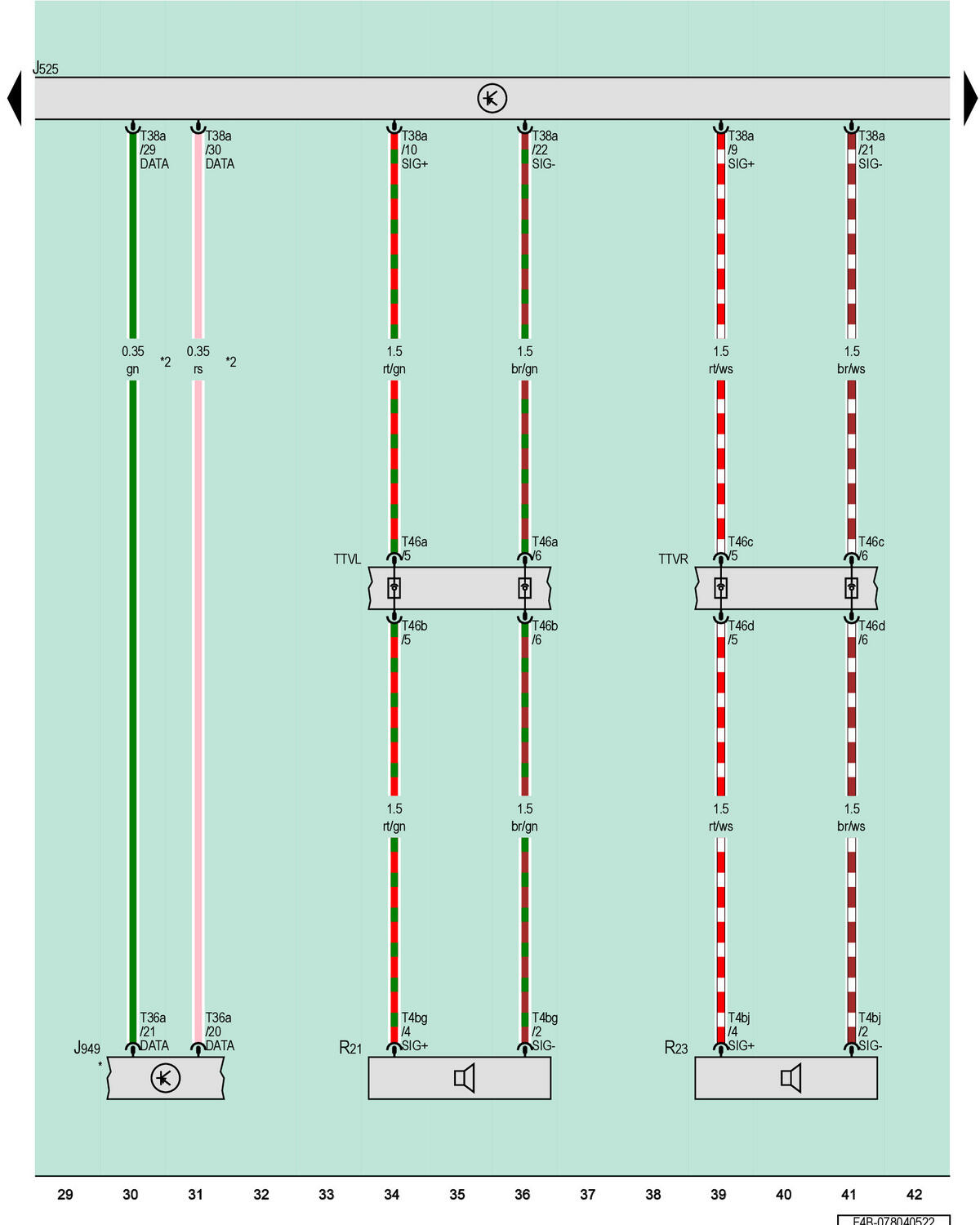

Digital Sound System Control Module, Control Module For Emergency Call Module And Communication Unit, Left Front Bass Speaker, Right Front Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J949

Control Module for Emergency Call Module and Communication Unit

R21

Left Front Bass Speaker

R23

Right Front Bass Speaker

T4bg

4-Pin Connector, Black

T4bj

4-Pin Connector, Black

T36a

36-Pin Connector, Black

T38a

38-Pin Connector, Black

T46a

46-Pin Connector, Black

T46b

46-Pin Connector, Black

T46c

46-Pin Connector, Black

T46d

46-Pin Connector, Black

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

*

Refer to Applicable Communication Wiring Diagram

*2

Audio Bus Data Bus Wire
