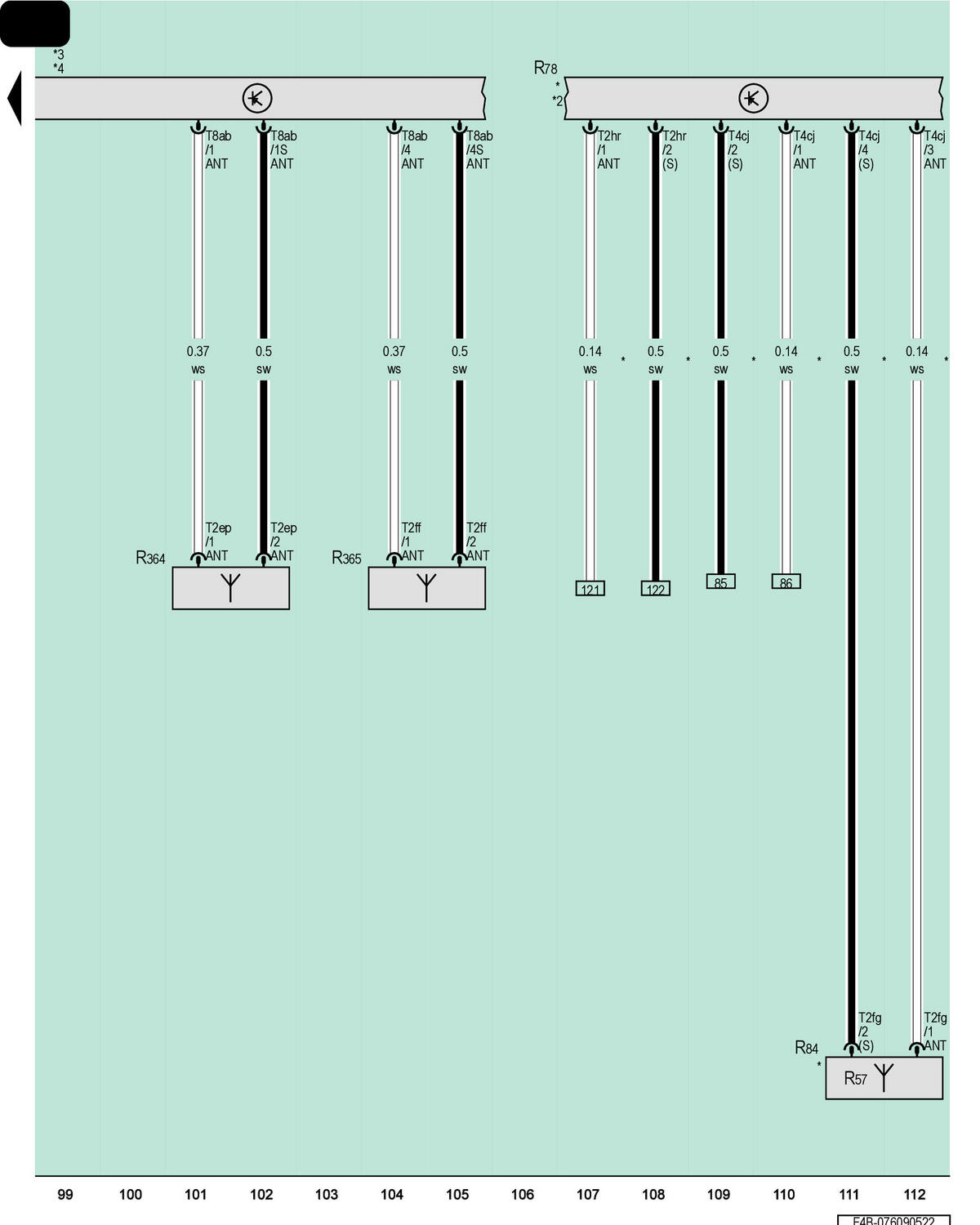

Information Electronics Control Module 1, TV Tuner, TV Antenna Amplifier 3, Vehicle Interior Communication Antenna, Vehicle Interior Communication Antenna 2
J794
Information Electronics Control Module 1
R57
TV Antenna 3
R78
TV Tuner
R84
TV Antenna Amplifier 3
R364
Vehicle Interior Communication Antenna
R365
Vehicle Interior Communication Antenna 2
T2ep
2-Pin Connector, Naturally Cloudy
T2ff
2-Pin Connector, Naturally Cloudy
T2fg
2-Pin Connector, Brown
T2hr
2-Pin Connector, Brown
T4cj
4-Pin Connector, Green
T8ab
8-Pin Connector, White
*
For Vehicles with Japan Equipment
*2
Refer to the Applicable TV Tuner Wiring Diagram
*3
Refer to Applicable Sound System Wiring Diagram
*4
Refer to Applicable Windshield Projection Wiring Diagram
