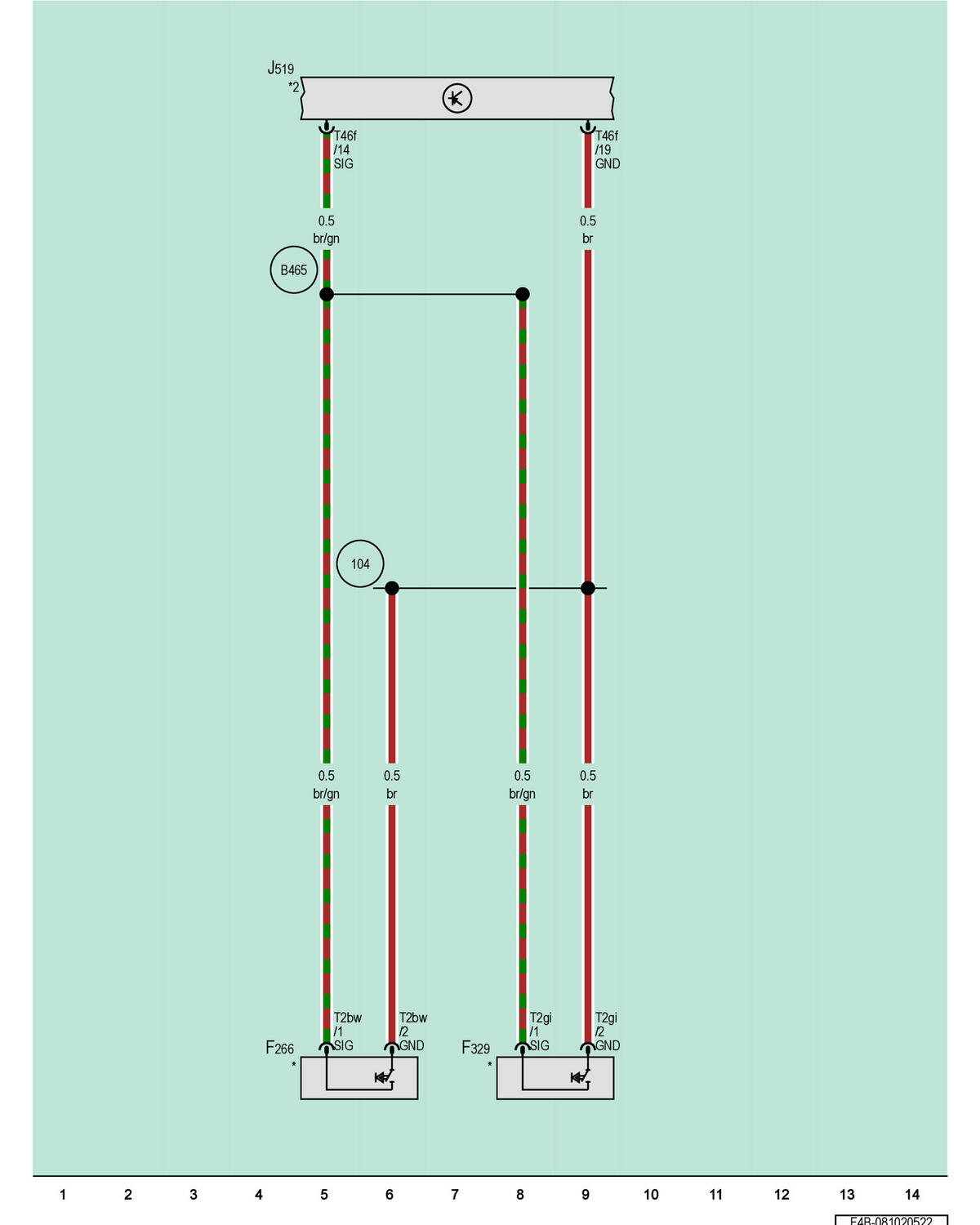

Engine Hood Contact Switch, Hood Contact Switch 2, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

F266

Engine Hood Contact Switch

F329

Hood Contact Switch 2

J519

Vehicle Electrical System Control Module

T2bw

2-Pin Connector, Black

T2gi

2-Pin Connector, Black

T46f

46-Pin Connector, Black

104

Ground Connection (in Right Front Wiring Harness), Sensor Grounds

B465

Connection 1 (in Main Wiring Harness)

*

Pre-Wired Component

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
