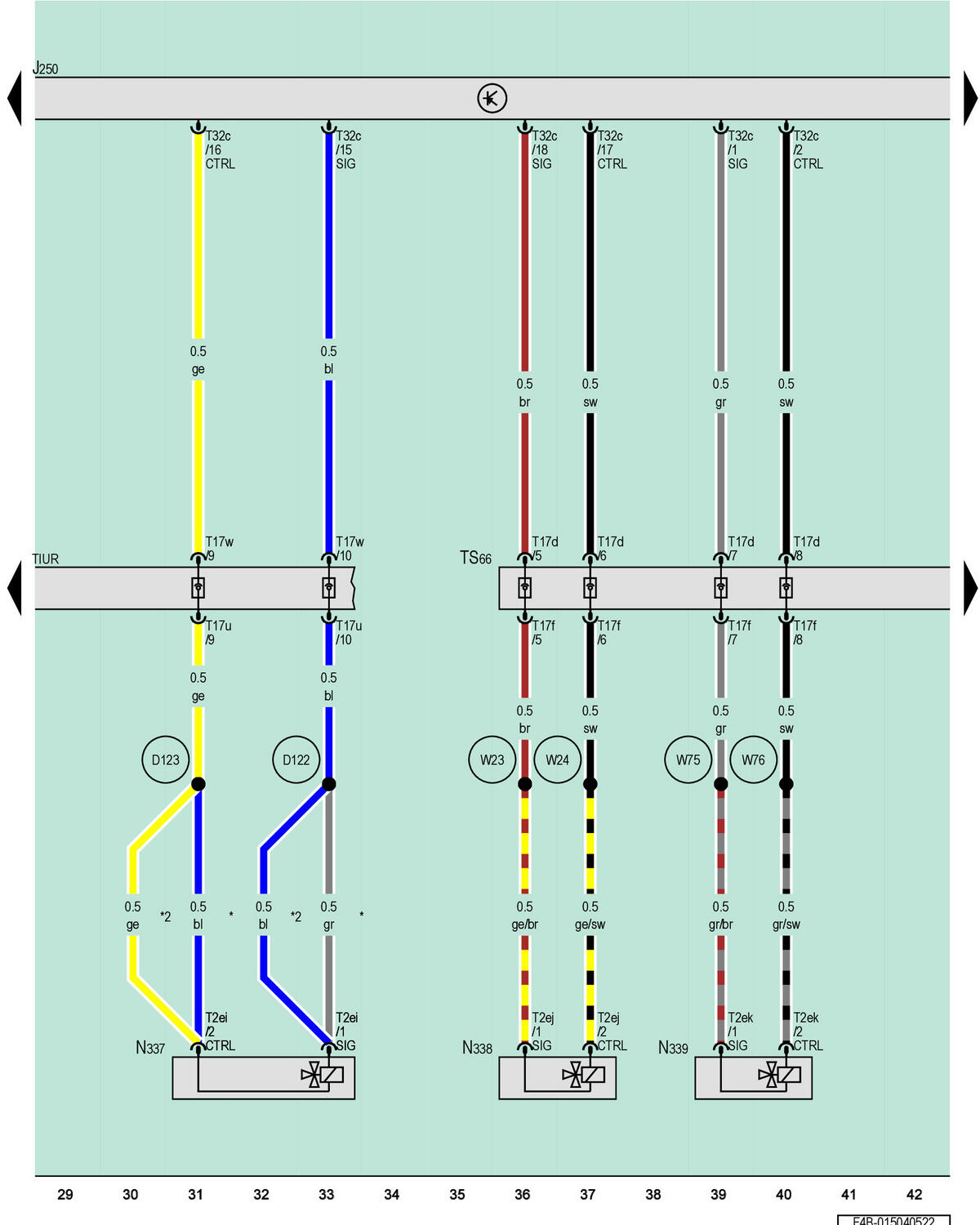

Electronic Damping Control Module, Right Front Damping Adjustment Valve, Left Rear Damping Adjustment Valve, Right Rear Damping Adjustment Valve

Courtesy of AUDI OF AMERICA, LLC

J250

Electronic Damping Control Module

N337

Right Front Damping Adjustment Valve

N338

Left Rear Damping Adjustment Valve

N339

Right Rear Damping Adjustment Valve

T2ei

2-Pin Connector, Black

T2ej

2-Pin Connector, Black

T2ek

2-Pin Connector, Black

T17d

17-Pin Connector, Brown

T17f

17-Pin Connector, Brown

T17u

17-Pin Connector, Black

T17w

17-Pin Connector, Black

T32c

32-Pin Connector, Black

TIUR

Coupling Point in Interior, Bottom Right

TS66

Rear Suspension Coupling Point

D122

Connection 20 (in Engine/Motor Compartment Wiring Harness)

D123

Connection 21 (in Engine/Motor Compartment Wiring Harness)

W23

Sensor Connection 1 (in Rear Wiring Harness)

W24

Sensor Connection 2 (in Rear Wiring Harness)

W75

Sensor Connection 3 (in Rear Wiring Harness)

W76

Sensor Connection 4 (in Rear Wiring Harness)

For Vehicles Without US Equipment

For Vehicles with US Equipment
