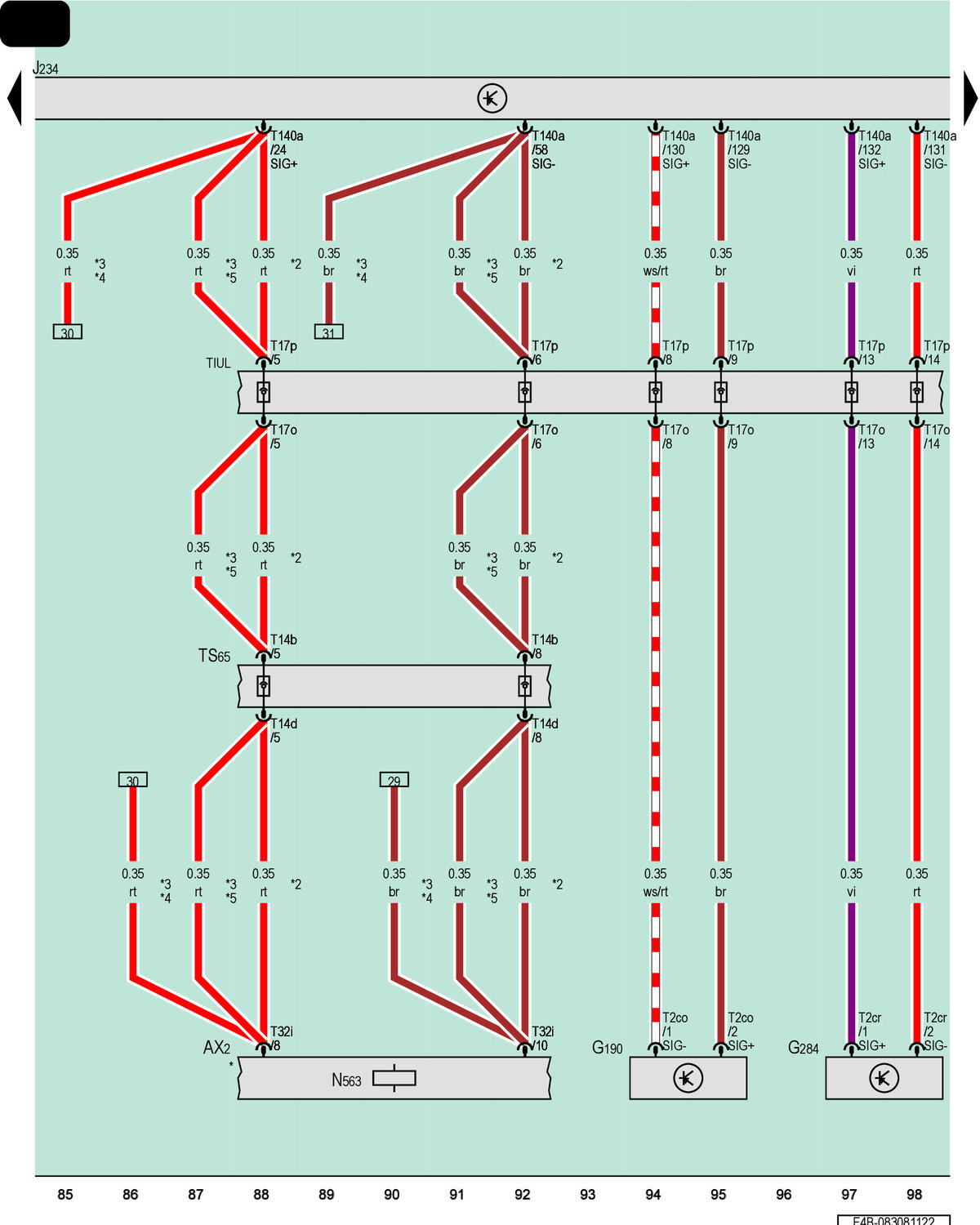

Front Airbag Crash Sensor, Passenger Side Front Airbag Crash Sensor, Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

AX2

High-Voltage Battery 1

G190

Front Airbag Crash Sensor

G284

Passenger Side Front Airbag Crash Sensor

J234

Airbag Control Module

N563

High-Voltage Battery Interrupt Igniter

T2co

2-Pin Connector, Yellow

T2cr

2-Pin Connector, Yellow

T14b

14-Pin Connector, Black

T14d

14-Pin Connector, Black

T17o

17-Pin Connector, Brown

T17p

17-Pin Connector, Brown

T32i

32-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

TS65

Front Suspension Coupling Point

*

Refer to Applicable High-Voltage Battery Wiring Diagram

*2

For Rear Wheel Drive Vehicles

*3

For AWD Vehicles

*4

Through November 2022

*5

From November 2022
