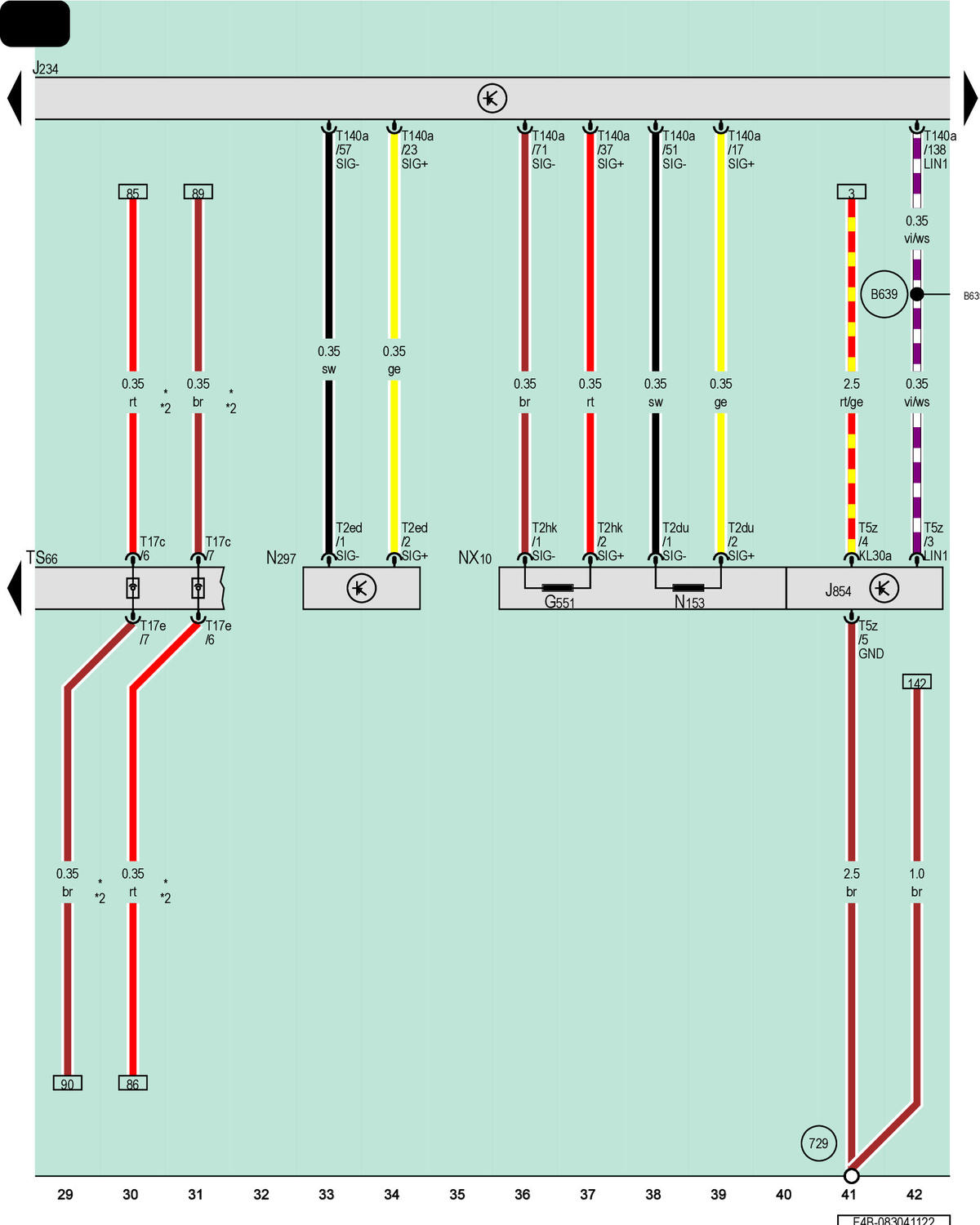

Airbag Control Module, Left Front Seat Belt, Driver Seat Belt TENSIONER Igniter 2

Courtesy of AUDI OF AMERICA, LLC

G551

Driver Belt Force Limiter

J234

Airbag Control Module

J854

Left Front Seat Belt Tensioner Control Module

NX10

Left Front Seat Belt

N153

Driver Seat Belt Tensioner Igniter 1

N297

Driver Seat Belt Tensioner Igniter 2

T2du

2-Pin Connector, Yellow

T2ed

2-Pin Connector, Yellow

T2hk

2-Pin Connector, Yellow

T5z

5-Pin Connector, Naturally Cloudy

T17c

17-Pin Connector, Black

T17e

17-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TS66

Rear Suspension Coupling Point

729

Ground Connection on Left Rear Wheel Housing

B639

Airbag Connection 3 (in Main Wiring Harness)

*

For AWD Vehicles

*2

Through November 2022
