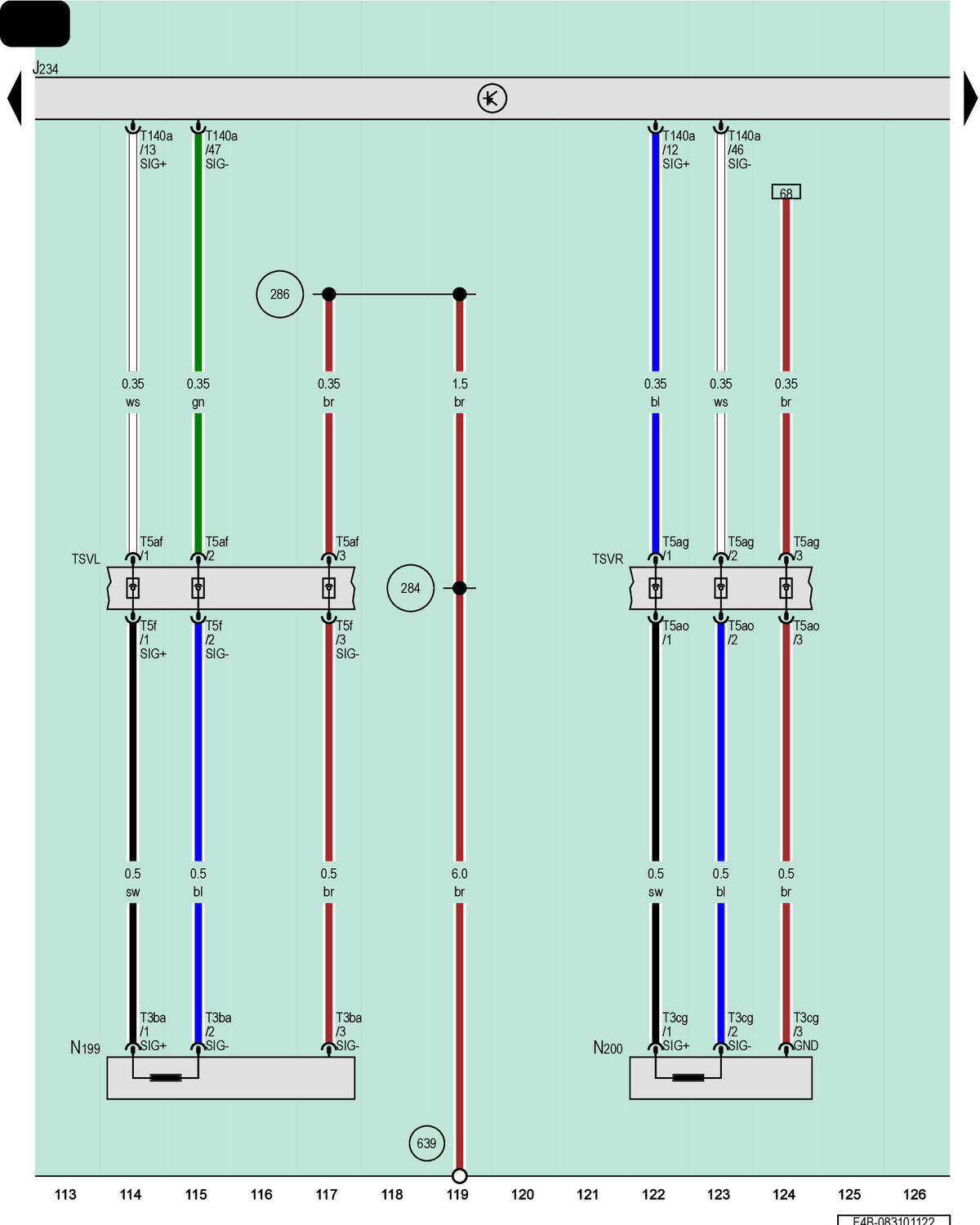

Airbag Control Module, Driver Thorax Airbag Igniter, Front Passenger Thorax Airbag Igniter
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
N200
Front Passenger Thorax Airbag Igniter
T3ba
3-Pin Connector, Yellow
T3cg
3-Pin Connector, Yellow
T5af
5-Pin Connector, Yellow
T5ag
5-Pin Connector, Yellow
T5ao
5-Pin Connector, Yellow
T5f
5-Pin Connector, Yellow
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
284
Ground Connection 6 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
