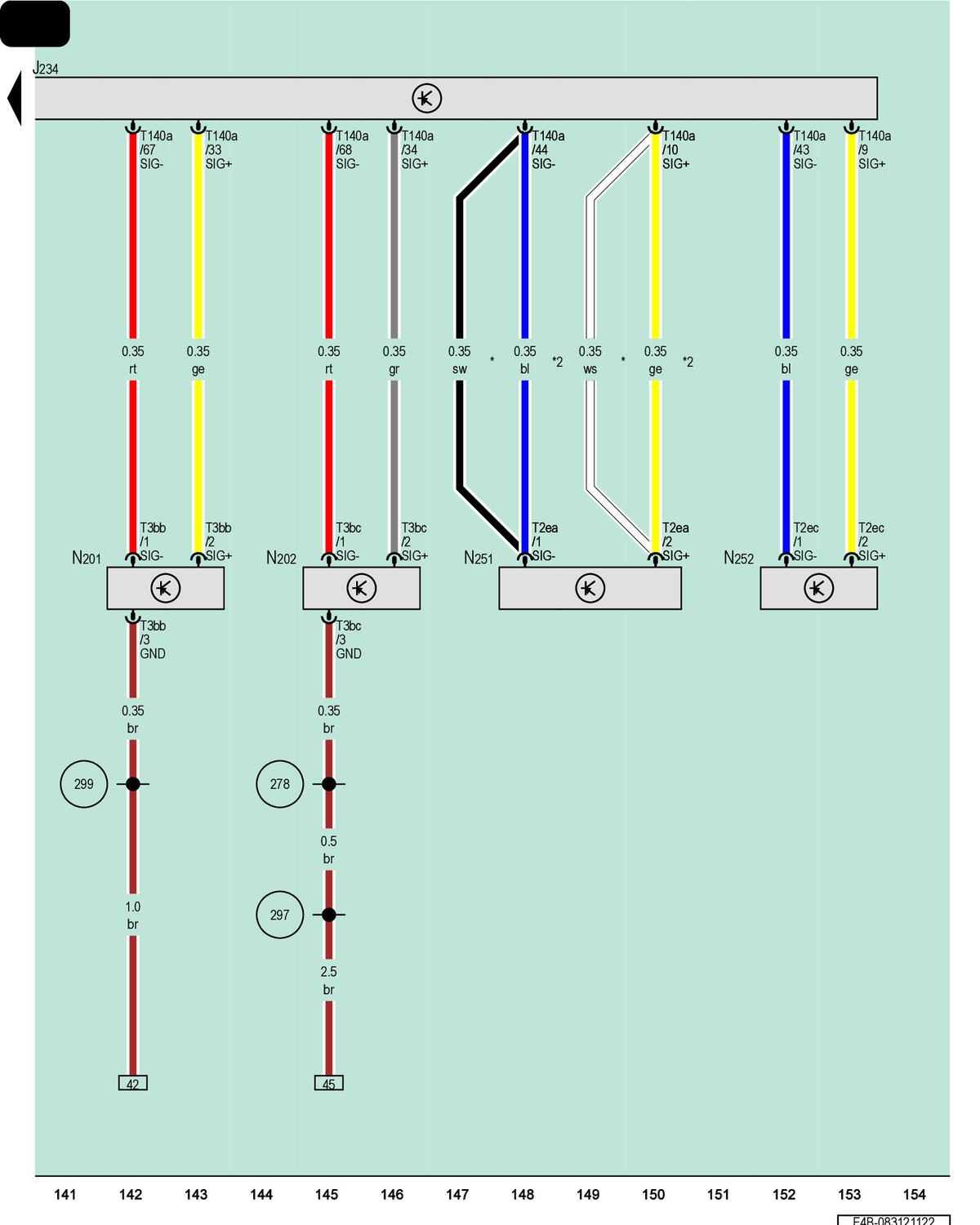

Airbag Control Module, Driver Side Rear Thorax Airbag Igniter, Passenger Side Rear Thorax Airbag Igniter, Driver Head Curtain Airbag Igniter, Front Passenger Head Curtain Airbag Igniter

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

N201

Driver Side Rear Thorax Airbag Igniter

N202

Passenger Side Rear Thorax Airbag Igniter

N251

Driver Head Curtain Airbag Igniter

N252

Front Passenger Head Curtain Airbag Igniter

T2ea

2-Pin Connector, Yellow

T2ec

2-Pin Connector, Yellow

T3bb

3-Pin Connector, Yellow

T3bc

3-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

278

Ground Connection 4 (in Interior Wiring Harness)

297

Ground Connection 12 (in Interior Wiring Harness)

299

Ground Connection 14 (in Interior Wiring Harness)

*

From July 2022

*2

Through July 2022
