Overview - Rear Wheel Housing Liner

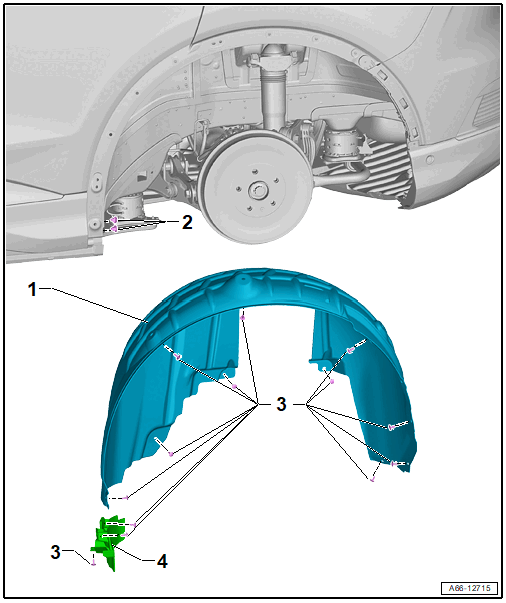

GWWA66-12715Courtesy of AUDI OF AMERICA, LLC
  1. Wheel Housing Liner
  2. Expanding Nut
    • Quantity: 2
  3. Bolt
    • Quantity: 15
    • 2 Nm
  4. Wheel Spoiler
