Adjustment Dimensions

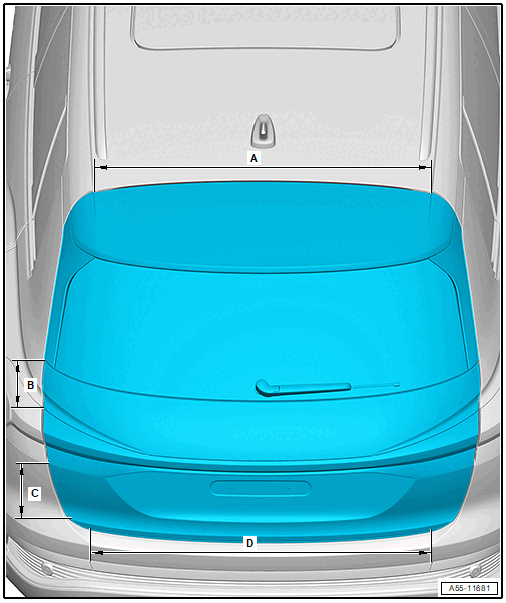

GWWA55-11681Courtesy of AUDI OF AMERICA, LLC
  1. A -  Rear Lid to Roof
    • Standard: gap dimension = 4.5 mm
    • Sportback: gap dimension = 4.0 mm
  2. B -  Rear Lid to Side Panel
    • Gap dimension = 2.5 mm
  3. C -  Rear Lid to Bumper Side
    • Gap dimension = 2.5 mm
  4. D -  Rear Lid to Bumper Bottom
    • Gap dimension = 4.7 mm
