Rear Wheel Spoiler, Removing And Installing: Removing

-- Remove the rear wheel housing liner. Refer to Rear Wheel Housing Liner, Removing and Installing  .

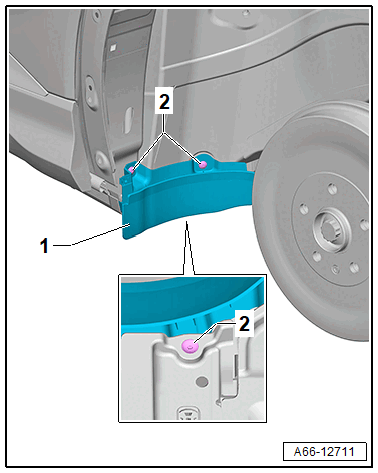

-- Remove the bolts -2-.

GWWA66-12711Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear wheel spoiler -1- toward the rear out of the side sill trim panel.
