Side Spoiler, Removing And Installing: Removing

-- Remove the spoiler. Refer to Spoiler, Removing and Installing  .

-- Remove the bolt -2-.

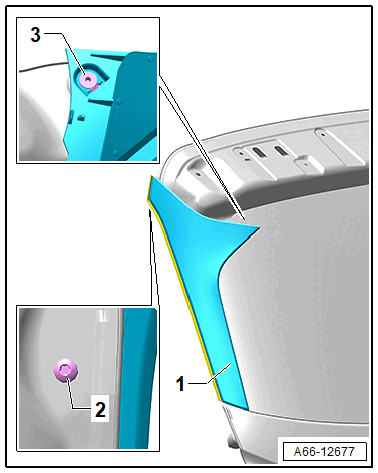

GWWA66-12677Courtesy of AUDI OF AMERICA, LLC

-- Carefully warm the side spoiler -1- using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A  .

-- Detach the clip -3- from the body using the Wedge Set - Wedge 2:T10383/2  .

-- Carefully pry out the spoiler on the side -1- using the Wedge Set - Wedge 2:T10383/2  .

-- Remove the side spoiler -1-.
