Side Spoiler, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
-- Pay attention to the repair information adhesive surfaces for adhesive tape. Refer to Repair Information .
-- Fold back the ends of the protective film, or attach a pulling aid -4- to the protective film.

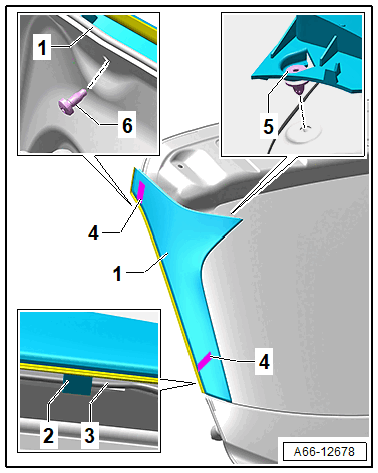

-- Position the side spoiler -1- at the top of the rear lid with the clip -5- and push it over the stop ridge -2- at the bottom to the stop on the rear lid -3-.
-- Remove the protective film on the pulling aids -4- from the adhesive tape.
-- Push the entire length of the side spoiler -1- on using the Roller:3356 .
-- Tighten the bolt -6-.
