License Plate, Mounting

Procedure without template

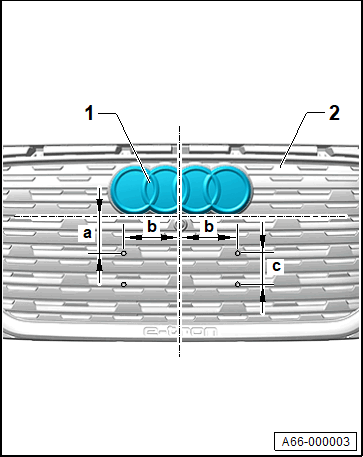

-- Measure the dimension -a- from the edge under the emblem -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Measure the dimension -b- from the center of the emblem -1- to the left and right for the license plate attachment.

-- Measure the dimension -c- for the license plate attachment from dimension -a-.

-- Position the license plate and install the self-tapping bolts for the license plate attachment.

Country

Dimension -a- in mm

Dimension -b- in mm

Dimension -c- in mm

Germany

245.5

North America

88.5

121

Switzerland⁽¹⁾

129.5

130

Italy

71.5

160

⁽¹⁾	In market-specific versions for Switzerland only two self-tapping bolts are necessary for securing the license plate.

Tightening Specifications
