C-Pillar Trim, Removing And Installing: Removing

-- Carefully warm the C-pillar trim -1- using the Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A  .

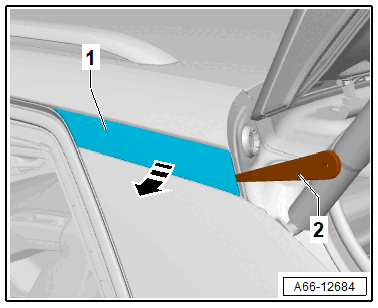

GWWA66-12684Courtesy of AUDI OF AMERICA, LLC

-- Carefully lift the C-pillar trim -1- -arrow- using the Trim Removal Wedge:3409  -2- at the same time do not damage the paint coat.
