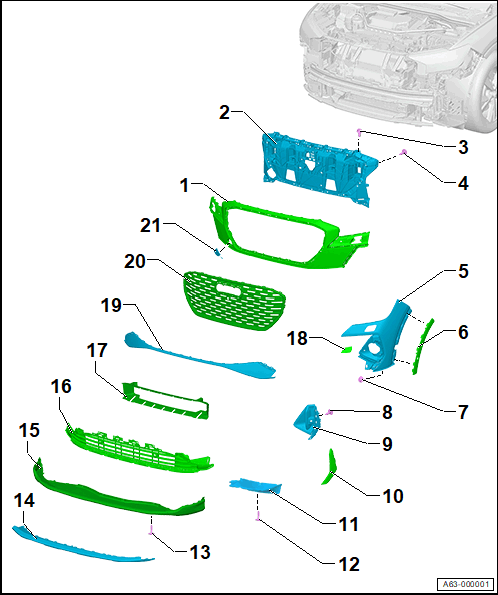

Overview - Bumper Cover

Courtesy of AUDI OF AMERICA, LLC

Trim
- For the bumper cover
- Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING
Bumper Cover End Plate
- Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 3 Nm
Bolt
- Quantity: 16
- 2 Nm
Bumper Cover Side Panel
- Refer to BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING
- Refer to BUMPER COVER, REMOVING AND INSTALLING .
Front Wheel Arch Trim
- For the bumper cover
- Refer to FRONT WHEEL COVERS, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 2 Nm
Bolt
- Quantity: 2
- 2 Nm
Air Guide Grille
- Side
- Refer to SIDE AIR GUIDE GRILLE, REMOVING AND INSTALLING
Trim Molding
- Depending on vehicle equipment
- Refer to TRIM MOLDING, REMOVING AND INSTALLING .
Air Guide
- Refer to SIDE AIR GUIDE GRILLE, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- Tightening specification. Refer to Overview - Front Wheel Housing Liner .
Bolt
- Quantity: 4
- 2 Nm
Impact Guard
- Refer to IMPACT GUARD, REMOVING AND INSTALLING
Bumper Cover Front Spoiler
- Refer to BUMPER COVER FRONT SPOILER, REMOVING AND INSTALLING .
Air Intake Grille
- Center
- Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING .
Center Air Duct
- Refer to CENTER AIR DUCT, REMOVING AND INSTALLING
Cover
- For the headlamp washer system washer nozzle
- Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Connecting Piece
- Refer to CONNECTING PIECE, REMOVING AND INSTALLING
Radiator Grille
- Refer to OVERVIEW - RADIATOR GRILLE .
Cover
- For the towing eye
