Component Location Overview - Lamps On The Center Console, In The Seats

Courtesy of AUDI OF AMERICA, LLC

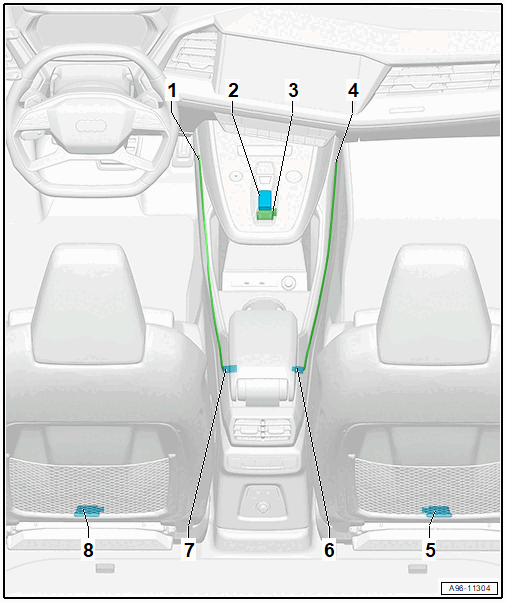

1. Fiber-Optic Cable
   • For Front Center Console Ambient Lighting Bulb 1 -L193-
   • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING, REMOVING AND INSTALLING
2. Selector Lever Transmission Range Display -Y5-
   • Integrated into the display unit / selector mechanism control.
   • Can only be replaced together with the display unit / selector mechanism control if faulty
   • Refer to OVERVIEW - SHIFT MECHANISM .
3. Front Center Console Storage Compartment Illumination Bulb -L324-
   • Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT ILLUMINATION BULB L324, REMOVING AND INSTALLING
4. Fiber-Optic Cable
   • For Front Center Console Ambient Lighting Bulb 2 -L194-
   • Refer to FIBER OPTIC CABLE FOR FRONT CENTER CONSOLE AMBIENT LIGHTING, REMOVING AND INSTALLING
5. Right Rear Footwell Lamp -W46-
   • Refer to Left and Right Rear Footwell Lamp W45/W46, Removing and Installing  .
6. Front Center Console Ambient Lighting Bulb 2 -L194-
   • Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 2 L193/L194, REMOVING AND INSTALLING
7. Front Center Console Ambient Lighting Bulb 1 -L193-
   • Refer to FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 AND 2 L193/L194, REMOVING AND INSTALLING
8. Left Rear Footwell Lamp -W45-
   • Refer to Left and Right Rear Footwell Lamp W45/W46, Removing and Installing  .
