Dimensions - Side Name Badges And Emblems

Courtesy of AUDI OF AMERICA, LLC

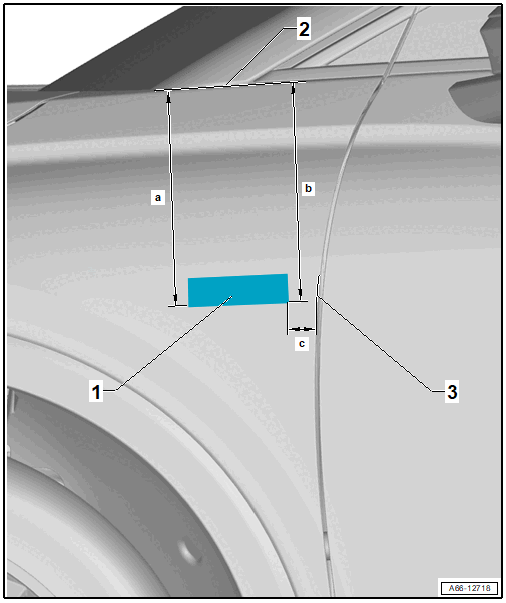

1. Type/Emblem
   • Dimension -a- = 172 mm
   • Dimension -b- = 174 mm
   • Dimension -c- = 26.5 mm
   • Refer to the appropriate Service Information .
2. Upper Edge on Fender
3. Rear Edge on Fender
