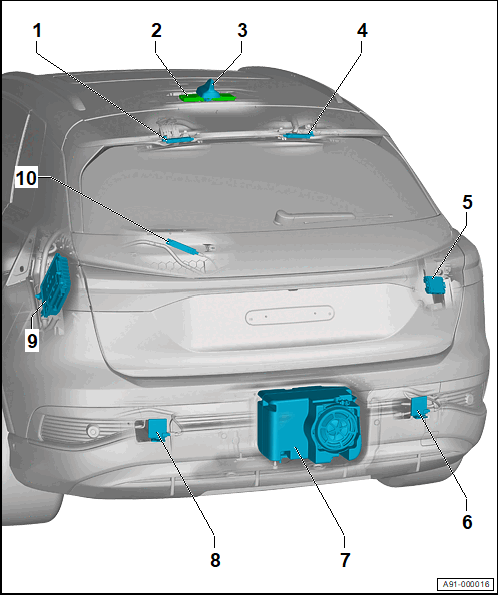

Component Location Overview - Components/Control Modules In Rear Section Of Vehicle

Courtesy of AUDI OF AMERICA, LLC

1. Antenna Amplifier -R24-
   • with Antenna -R11-
   • with TV Antenna 1 -R55-, ER5 and K8G/K8C
   • Refer to Antenna Amplifier R24, Removing and Installing  .
2. Internet Access Control Module -J666-
   • Refer to INTERNET ACCESS CONTROL MODULE J666, REMOVING AND INSTALLING  .
3. Roof Antenna -RX5-
   • With GPS Antenna -R50-
   • With Satellite Tuner Antenna -R172-
   • with Emergency Call Module Antenna -R263-
   • Refer to Roof Antenna -RX5-, Removing and Installing
4. Antenna Amplifier 2 -R111-
   • with Radio Antenna 2 -R93-
   • with Digital Radio Antenna -R183-, ER1/ER7 and K8C/K8G
   • with TV Antenna 2 -R56-, ER5 and K8G/K8C
   • Refer to Antenna Amplifier 2 R111, Removing and Installing  .
5. Cellular Telephone Amplifier -R86-
   • Refer to Cellular Telephone Amplifier R86, Removing and Installing  .
6. LTE Antenna 2 -R306-
   • Refer to LTE ANTENNA 2 R306, REMOVING AND INSTALLING, 9ZE  .
7. Subwoofer -R211-
   • Refer to Subwoofer R211, Removing and Installing  .
8. Emergency Call Module Antenna 2 -R322-
   • Refer to Emergency Call Module Antenna 2 R322, Removing and Installing  .
9. Digital Sound System Control Module -J525-
   • Refer to Digital Sound System Control Module J525, Removing and Installing
10. TV Antenna Amplifier 3 -R84-
    • with TV Antenna 3 -R57-
    • Sportback: arranged as a mirror image
    • Refer to TV Antenna Amplifier 3 R84, Removing and Installing  .
