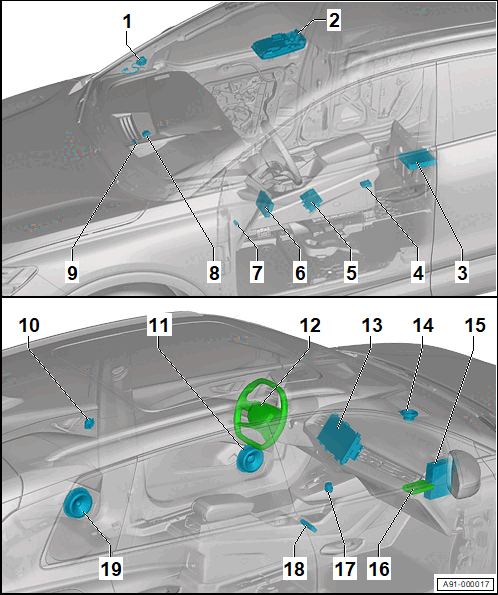

Component Location Overview - Components/Control Modules In Center Section Of Vehicle

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Front Treble Speaker
   • Left Front Treble Speaker -R20-
   • Right Front Treble Speaker -R22-
   • Refer to Left and Right Front Treble Speaker R20/R22, Removing and Installing  .
2. 2 -  Telephone Microphone -R38- in the Front Roof Module -WX3-
   • Refer to Telephone Microphone R38, Removing and Installing  .
3. 2 -  Interior Microphone -R74- in Front Roof Module -WX3-
   • Refer to Interior Microphone R74, Removing and Installing  .
4. 3 -  TV Tuner -R78-
   • Refer to TV Tuner R78, Removing and Installing  .
5. 4 -  USB Charging Socket 1 -U37-
   • Refer to USB Charging Socket 1 -U37-, Removing and Installing
6. 5 -  Control Module for Emergency Call Module and Communication Unit -J949-
   • With Telematics Emergency Battery -A16-
   • Refer to Emergency Call Module Speaker R335, Removing and Installing  .
   • Refer to the appropriate Service Information .
7. 6 -  Mobile Device Charger 1 -J1146-
   • Refer to Telephone Baseplate, Removing and Installing  .
8. 7 -  Vehicle Interior Communication Antenna -R364-
   • Refer to Vehicle Interior Communication Antenna R364, Removing and Installing  .
9. 8 -  Near Field Communication Antenna -R269-
   • Refer to Near Field Communication Antenna R269, Removing and Installing  .
10. 9 -  Vehicle Interior Communication Antenna 2 -R365-
    • Refer to VEHICLE INTERIOR COMMUNICATION ANTENNA 2 R365, REMOVING AND INSTALLING  .
11. 10 -  Rear Treble Speaker
    • Left Rear Treble Speaker -R14-
    • Right Rear Treble Speaker -R16-
    • Refer to Left and Right Rear Treble Speaker R14/R16, Removing and Installing  .
12. 11 -  Front Bass Speaker
    • Left Front Bass Speaker -R21-
    • Right Front Bass Speaker -R23-
    • Refer to Left and Right Front Bass Speaker R21/R23, Removing and Installing  .
13. 12 -  Multifunction Buttons in Steering Wheel
    • Left Multifunction Buttons on Steering Wheel -E440-
    • Right Multifunction Buttons on Steering Wheel -E441- with Multifunction Steering Wheel Control Module -J453-.
    • Refer to LEFT/RIGHT MULTIFUNCTION BUTTONS ON STEERING WHEEL E440 / E441, REMOVING AND INSTALLING  .
14. 12 -  Paddle Switch in the Steering Wheel
    • Upshift Paddle Switch - E755-
    • Downshift Paddle Switch - E756-
    • Refer to UPSHIFT AND DOWNSHIFT PADDLE SWITCH E755/ E756, REMOVING AND INSTALLING  .
15. 12 -  Steering Wheel Touch Recognition Control Module - J1158-
    • Refer to STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE J1158, REMOVING AND INSTALLING  .
16. 13 -  Front Information Display Control Head -J685-
    • Refer to Front Information Display Control Head J685, Removing and Installing  .
17. 14 -  Emergency Call Module Speaker -R335-
    • Refer to Emergency Call Module Speaker R335, Removing and Installing  .
18. 15 -  Information Electronics Control Module 1 -J794-
    • Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 J794  .
19. 16 -  Chip Card Reader Control Module -J676-
    • Refer to Chip Card Reader Control Module J676, Removing and Installing  .
20. 16 -  Android Operating System Control Module -J1243-
    • Refer to ANDROID OPERATING SYSTEM CONTROL MODULE J1243, REMOVING AND INSTALLING  .
21. 17 -  Driver Volume Control -E67-
    • Refer to Driver Volume Control E67, Removing and Installing  .
22. 18 -  USB Connection 1 -U41-
    • Refer to USB Connection 1 U41, Removing and Installing  .
23. 19 -  Rear Bass Speaker
    • Left Rear Bass Speaker -R15-
    • Right Rear Bass Speaker -R17-
    • Refer to Left and Right Rear Bass Speaker R15/R17, Removing and Installing  .
