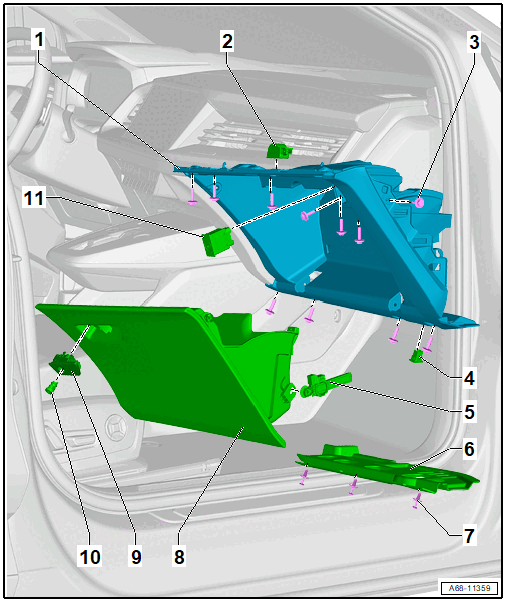

Overview - Glove Compartment

The overview shows a LHD vehicle as an example.

Courtesy of AUDI OF AMERICA, LLC

1. Glove Compartment
   • Refer to Glove Compartment, Removing and Installing  .
2. Glove Compartment Lamp -W6-
   • Refer to GLOVE COMPARTMENT LAMP -W6-, REMOVING AND INSTALLING .
3. Bolt
   • 9 or 11 pieces
   • 3 Nm
4. Right Front Footwell Lamp -K269-
   • Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP K268/K269, REMOVING AND INSTALLING .
5. Glove Compartment Damping Element
   • Refer to Glove Compartment Damping Element, Removing and Installing  .
6. Front Passenger Side Footwell Cover
   • Refer to Front Passenger Side Footwell Cover, Removing and Installing  .
7. Expanding Rivets
   • Quantity: 3
8. Glove Compartment Lid
   • Refer to Glove Compartment Lid, Removing and Installing  .
9. Glove Compartment Handle
   • Refer to Glove Compartment Handle, Removing and Installing  .
10. Glove Compartment Handle Lock Cylinder
