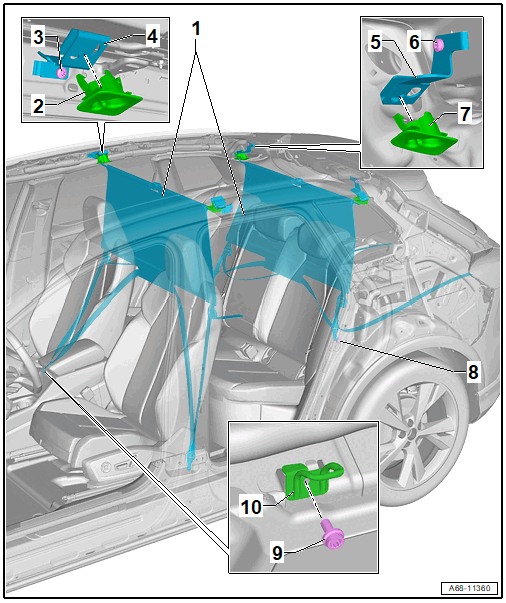

Overview - Screen Separator

Courtesy of AUDI OF AMERICA, LLC

Screen Separator
Front Screen Separator Bracket Trim
Bolt
- One piece per side
- 9 Nm
Front Upper Screen Separator Bracket
- Refer to FRONT UPPER SCREEN SEPARATOR BRACKET, REMOVING AND INSTALLING
Rear Upper Screen Separator Bracket
- Refer to REAR UPPER SCREEN SEPARATOR BRACKET, REMOVING AND INSTALLING
Bolt
- One piece per side
- 9 Nm
Rear Screen Separator Bracket Trim
Tie Down
Bolt
- One piece per side
- 20 Nm
Lower Screen Separator Bracket
- Refer to LOWER SCREEN SEPARATOR BRACKET, REMOVING AND INSTALLING
