Center Console Bracket, Removing And Installing: Removing

-- Remove the front seats. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Remove the center console. Refer to Center Console, Removing and Installing  .

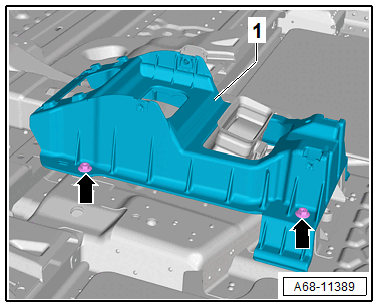

Front Center Console Bracket

-- Unclip the Wi-Fi antenna from the bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cable guide clips from the bracket.

-- Push the carpet to the side.

-- Remove the bolts -arrows- and remove the bracket -1- upward.

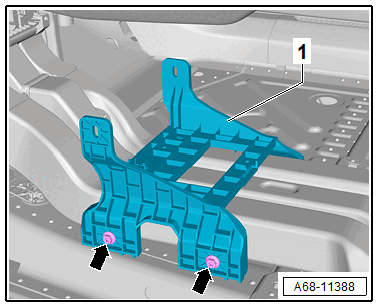

Rear Center Console Bracket

-- Remove the control module for the emergency call module and communication unit. Refer to CONTROL MODULE FOR EMERGENCY CALL MODULE AND COMMUNICATION UNIT J949, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cable guide clips from the bracket.

-- Push the carpet to the side.

-- Remove the bolts -arrows-.

-- Remove the rear center console bracket -1- upward.

Continuation for all vehicles
