CUPHOLDER, Removing And Installing: Removing

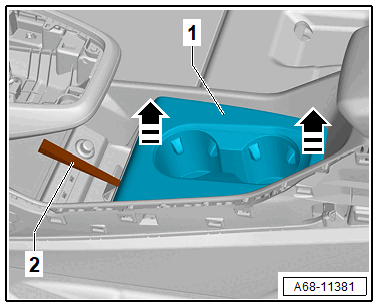

-- Unclip the cupholder -1- from the center console using a suitable trim removal wedge -2- -direction of the arrow-.

GWWA68-11381

Courtesy of AUDI OF AMERICA, LLC
