Parking Lock Emergency Release Cable, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:

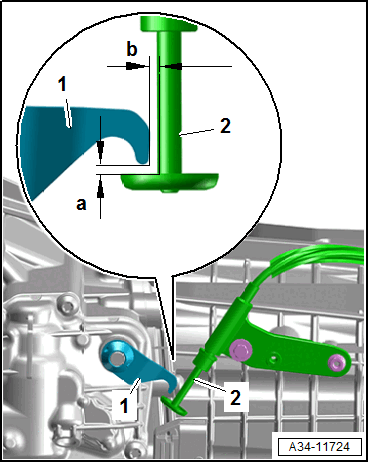

- To prevent structure-borne noise transfer the emergency release cable -2- does not contact the parking lock gear -1-.
- Because of this align the emergency release cable -2- so that at the dimension -a and b- a small distance is present.
-- Check the parking lock emergency release. Refer to EMERGENCY RELEASE FROM P .
