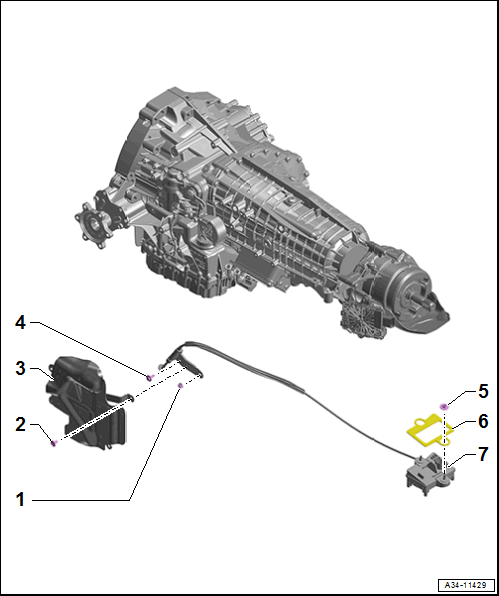

Overview - Parking Lock Emergency Release

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • 4 Nm
2. Bolt
   • 9 Nm
   • Equipped on some models
3. Heat Shield
   • Equipped on some models
4. Bolt
   • 9 Nm
5. Nut
   • 4 Nm
   • Quantity: 2
6. Seal
7. Emergency Release Cable
   • For the parking lock
   • Do not bend or kink
   • Removing and installing. Refer to PARKING LOCK EMERGENCY RELEASE CABLE, REMOVING AND INSTALLING .
