Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

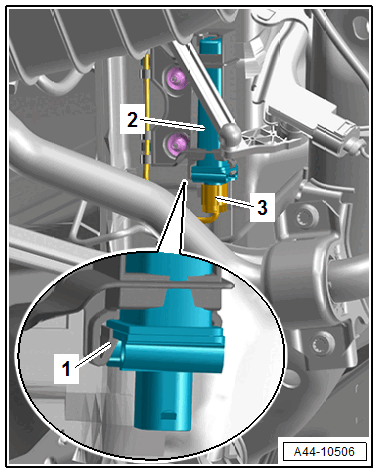

-- Disconnect the connector -3-.

-- Release the catch -1- and remove the Tire Pressure Monitoring Control Module -J502- -2- downward.
