Overview - Tire Pressure Monitoring Sensor

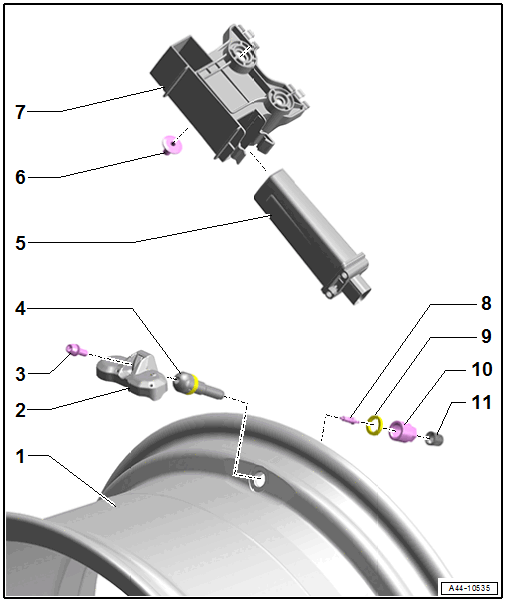

Fig 1: Exploded View Of Tire Pressure Monitoring Sensor

Courtesy of AUDI OF AMERICA, LLC

1. Rim
   • Tires, removing and mounting. Refer to TIRES, CHANGING, VEHICLES WITH TIRE PRESSURE MONITORING SYSTEM .
2. Tire Pressure Sensor
   • Removing and Installing. Refer to TIRES, CHANGING, VEHICLES WITH TIRE PRESSURE MONITORING SYSTEM .
3. Bolt
   • 4 Nm
   • Replace after removing
   • Self-locking
4. Metal Valve
   • Allocation. Refer to the Parts Information.
   • Removing and Installing. Refer to METAL VALVE BODY, REMOVING AND INSTALLING .
5. Tire Pressure Monitoring Control Module -J502-
   • Removing and Installing. Refer to Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING .
6. Nut
   • 2 Nm
7. Bracket
   • for Tire Pressure Monitoring Control Module
8. Valve Insert
   • Replace after tire removal
9. Washer
   • Not available separately.
10. Union Nut
    • Wheel electronics: 4 Nm
    • Metal valve: 6 Nm
    • Not available separately.
11. Valve Cap
