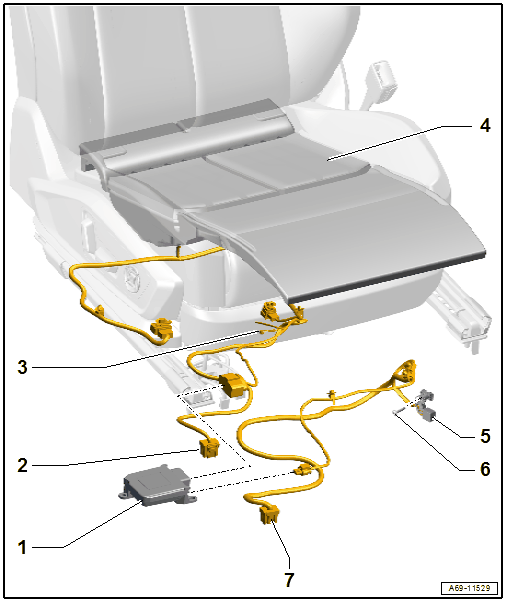

Component Location Overview - Seat Occupant Detection System

Courtesy of AUDI OF AMERICA, LLC

1. Seat Occupant Detection System Control Module -J706-
   • Refer to Seat Occupant Detection System, Removing and Installing  .
2. Wiring Harness
   • For the seat heating element with seat occupant detection system
   • Connector station in the vehicle floor under the seat.
   • Refer to Seat Occupant Detection System, Removing and Installing  .
3. Ground Connection
   • Nut: 1.5 Nm
4. Cushion with Seat Occupant Detection System
   • The seat heating element is used for the seat occupant detection system
   • The seat occupant detection system is bonded on the cushion
   • Refer to Seat Occupant Detection System, Removing and Installing  .
5. Seat Position Sensor
   • With Driver Seat Position Sensor - G553- /Front Passenger Seat Position Sensor - G554-
   • Refer to Seat Position Sensor, Removing and Installing  .
6. Bolt
   • Refer to Overview - Seat Position Sensor  .
7. Wiring Harness
   • Seat position sensor/passenger occupant detection sensor/seat belt switch
   • Refer to Seat Position Sensor, Removing and Installing  .

Tightening specification control module to bracket - Standard/Sport/Super Sport seat

Fig 1: Control Module Tightening Sequence on Bracket - Standard Seat

Courtesy of AUDI OF AMERICA, LLC

1. Control Module
2. Bolt
   • Tightening specification 1.5 Nm.
3. Connector
4. Connector
