Overview - Outer Rear Three-Point Seat Belt

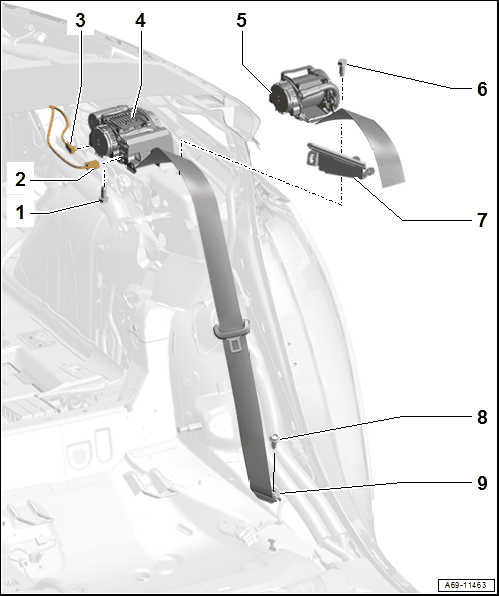

Fig 1: Exploded View Of Outer Rear Three-Point Seat Belt

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
2. Connector
   • Installed depending on vehicle equipment
   • Left Rear Seat Belt Tensioner Control Module -J1097- / Right Rear Seat Belt Tensioner Control Module -J1098-
3. Connector
   • Passenger Side Rear Seat Belt Tensioner Igniter -N197-
4. Rear Seat Belt
   • Vehicles with an electric seat belt tensioner
   • with Driver Side Rear Seat Belt Tensioner Igniter -N196-, Passenger Side Rear Seat Belt Tensioner Igniter -N197-, Left Rear Seat Belt Tensioner Control Module -J1097-, Right Rear Seat Belt Tensioner Control Module -J1098-
   • The Left Rear Seat Belt Tensioner Control Module -J1097- / Right Rear Seat Belt Tensioner Control Module -J1098- must be adapted after replacing the automatic belt retractors using the Vehicle Diagnostic Tester.
   • Refer to Rear Three-Point Seat Belt, Removing and Installing  .
5. Rear Seat Belt
   • Vehicles without an electric seat belt tensioner.
   • With Driver Side Rear Seat Belt Tensioner Igniter -N196- /Passenger Side Rear Seat Belt Tensioner Igniter -N197-
   • Refer to Rear Three-Point Seat Belt, Removing and Installing  .
6. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
7. Seat Belt Guide
   • Refer to Rear Seat Belt Guide, Removing and Installing  .
8. Bolt
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
   • 40 Nm
9. Belt End Fitting
   • Refer to Outer Rear Belt End Fitting, Removing and Installing  .
