Overview - Pedestrian Protection

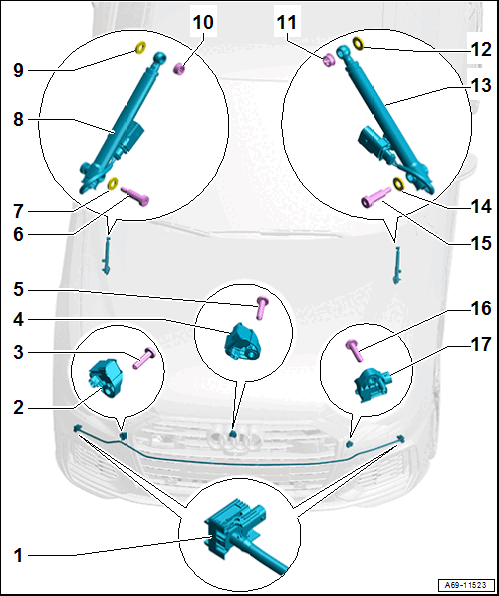

GWWA69-11523Courtesy of AUDI OF AMERICA, LLC
  1. Pressure Hose Sensor for Front Pedestrian Protection -G579-
    • LHD in the direction of travel on the left side: Driver Side Pedestrian Protection Crash Sensor 2 -G851-
    • LHD in the direction of travel on the right side: Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
    • RHD in the direction of travel on the right side: Driver Side Pedestrian Protection Crash Sensor 2 -G851-
    • RHD in the direction of travel on the left side: Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
    • Component location: in molded foam part on bumper carrier
    • Refer to Pressure Hose Sensor for Front Pedestrian Protection G579, Removing and Installing  .
  2. Pedestrian Protection Crash Sensor in Direction of Travel on the Right Side
  3. Bolt
    • 9 Nm
  4. Pedestrian Protection Center Crash Sensor -G693-
  5. Bolt
    • 9 Nm
  6. Bolt
    • 4 Nm
  7. Seal
  8. Pedestrian Protection Trigger in Direction of Travel on the Right Side
  9. Seal
  10. Clip
  11. Clip
  12. Seal
  13. Pedestrian Protection Trigger in Direction of Travel on the Left Side
  14. Seal
  15. Bolt
    • 4 Nm
  16. Bolt
    • 9 Nm
  17. Pedestrian Protection Crash Sensor in Direction of Travel on the Left Side
