Seat Occupant Detection Sensors G177/G178/G1010, Removing And Installing: Removing
-- Remove the bench seat. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .
-- Place the bench seat on a clean surface.
Outer passenger occupant detection sensor

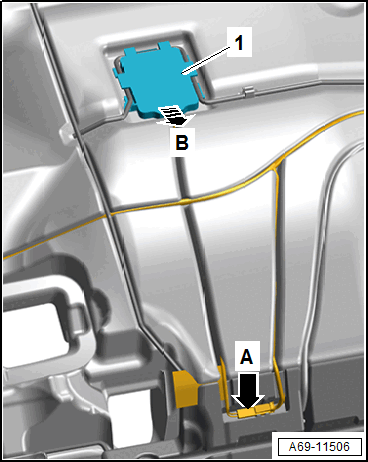

-- Free up and disconnect the connector -arrow A- for the passenger occupant detection sensor.
-- Unclip the passenger occupant detection sensor -1- from the bench seat frame -arrow B- and remove.
Continuation for all vehicles
Center passenger occupant detection sensor
-- Remove the bench seat cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .
-- Disconnect the bench seat cover and cushion. Refer to COVER AND CUSHION, SEPARATING .
-- Disconnect the connector for the passenger occupant detection system pressure sensor.

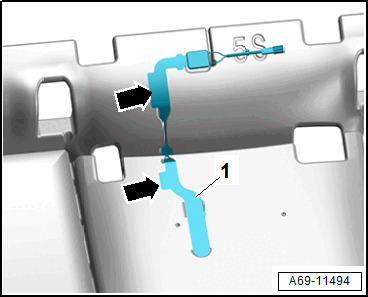

-- Loosen the passenger occupant detection sensor -1- on the adhesive surfaces -arrows- carefully from the cushion and remove.
Continuation for all vehicles
